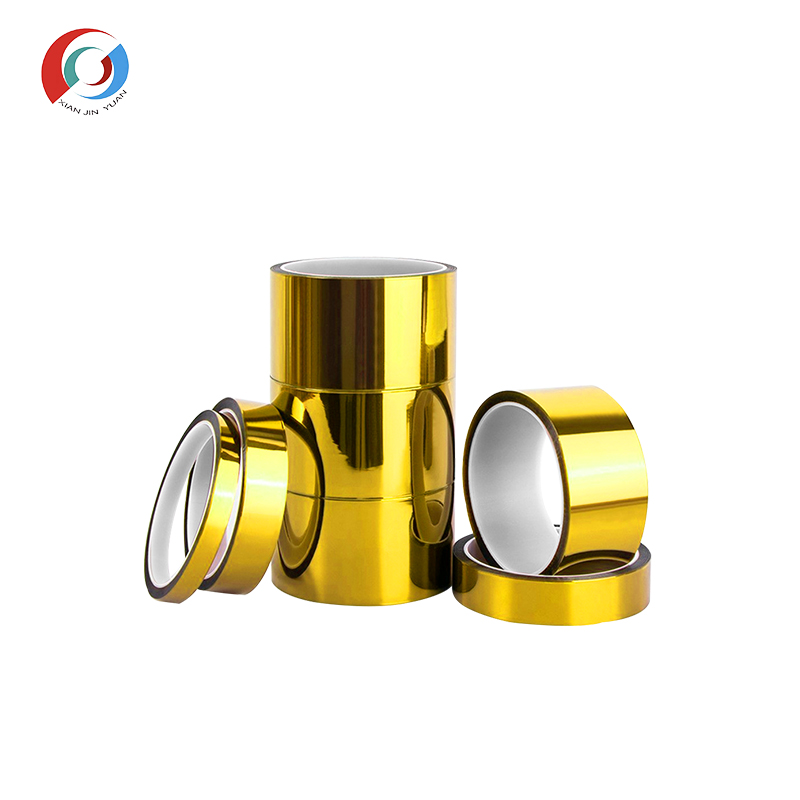

PP Gold Plating Film | When Lightweight Substrate Meets Precious Metal Coating - Opening up a New Dimension of Flexible Electronics and High Frequency Shielding

1、 When "lightness" and "conductivity" must be balanced: the technical logic of PP gold-plated film

By 2026, the global flexible film market is estimated to exceed $14 billion, and polypropylene (PP) is becoming an important force in the field of flexible electronic substrates due to its ultra-low density of 0.9g/cm ³, excellent chemical corrosion resistance, and wide operating temperature range (-40 ℃ to 120 ℃)However, the inherent chemical inertness of PP surface has made its bonding with metal coatings a technical bottleneck that has long plagued the industry.

The core technological breakthrough of PP gold-plated film lies in the realization of molecular level bonding between metal and plasticAdvanced Institute Technology adopts a composite process of vacuum evaporation and chemical plating to form a uniformly thick gold layer on the surface of PP substrate (thickness range of 0.01-5 μ m, tolerance controlled within ± 0.005 μ m)This process requires overcoming three major technical challenges: interface adhesion control, purity assurance system, and stress balance designBy using plasma pretreatment technology to form nanoscale concave convex structures on the surface of PP, the gold atoms and polymer chains are mechanically interlocked, and the peel strength of the gold plating film can reach 12N/cm, far exceeding the industry standard (≥ 5N/cm)Using 99.99% pure gold target material and closed-loop vacuum system, the impurity content is controlled below 0.001%, and the coating resistivity is as low as 2.2 × 10 ⁻Ω· m (20 ℃), close to the theoretical value of pure goldBy using a gradient coating structure (with a nickel transition layer as the bottom layer and a thickness of 0.05 μ m), the stress cracking problem caused by the difference in thermal expansion coefficients between metals and plastics has been effectively alleviated.

2、 Performance transition: not only conductive, but also an integrated carrier of functionality

The performance improvement of PP gold-plated film presents a synergistic effect of "1 1>2"On the basis of retaining the inherent advantages of PP material, the metal coating endows the material with three core functions.

In the field of electromagnetic shielding, the shielding effectiveness of a 3 μ m thick gold plating film can reach 80dB in the frequency range of 10kHz-40GHz, meeting the EMC standards for military electronic equipmentAs the global electromagnetic shielding film market grows from $4.49 billion in 2025 to $8.68 billion in 2032 (with a compound annual growth rate of 9.87%), gold-plated films with the dual advantages of high shielding effectiveness and lightweight are becoming key materials in high-frequency design.

In terms of conductivity, the surface resistivity of PP gold-plated film is as low as 0.01 Ω/□, making it an ideal substrate for flexible circuit boardsFurther research has revealed that the conductivity of the gold plating layer is closely related to the grain size - grain boundaries are the main scattering sites that hinder electron movement. Advanced technology has achieved precise control of the grain size and uniformity of the gold plating layer by regulating the activation state of the PP surface and electroplating process parameters.

In terms of biocompatibility, the cell adhesion rate of the gold layer surface is increased by 60% after special treatmentPolypropylene itself has been widely used in implantable medical devices such as hernia patches, and the gold-plated PP film has shown unique application potential in the field of implantable medical devices.

3、 Scene Revolution: From Consumer Electronics to Aerospace

The application boundaries of PP gold-plated film are continuously expanding, forming three major application matrices.

Consumer electronics and flexible wearable devices are currently the most active application areas. Advanced Institute Technology uses gradient composite coating and nano crystal micro control technology to ensure that the coating has a Vickers hardness of HV120 or higher, while allowing the film material to withstand more than 1000 small curvature radius bends without crack detachment. A wearable device manufacturer's application case shows that using PP gold-plated film instead of traditional copper foil reduces product weight by 40% and has a bending life exceeding 100000 times.

High frequency communication and radio frequency shielding are another rapidly growing application direction. As 5G/6G communication devices evolve towards higher frequency bands, more stringent requirements have been placed on the frequency response and consistency of shielding materials. PP gold-plated film exhibits significant advantages in high-frequency connectors, RF shielding films, and other scenarios due to the excellent conductivity and chemical stability of the gold plating layer.

The aerospace industry has an ultimate pursuit for lightweight and reliable materials. A certain satellite manufacturer uses a 0.5mm thick gold-plated film as the back panel of solar panels, which improves thermal control efficiency by 15% while maintaining the same total weightAccording to space environment simulation tests, the material has a mass loss rate of only 0.03% per year under the condition of an atomic oxygen flux of 10 ¹⁶ atoms/cm ².

4、 Outlook: When materials become system level solutions

The value of PP gold-plated film lies not only in its ability to simultaneously achieve the lightweight of plastic and the functionality of metal, but also in its ability to redefine the boundaries of material selection - engineers no longer need to make a trade-off between "lightweight" and "conductive". With the continuous improvement of material performance requirements in fields such as flexible electronics, high-frequency communication, aerospace, etc., PP gold plating film is evolving from a functional composite material to a key enabling component in system level design.

Advanced Institute (Shenzhen) Technology Co., Ltd. relies on its technological accumulation in the field of flexible substrate coating to continuously promote the deep optimization of PP gold plating film in grain control, interface engineering, and stress management. In the future, with the further maturity of preparation processes and the continuous expansion of application scenarios, PP gold plating film is expected to achieve industrialization in more high-value fields, providing solid support for the cross innovation of materials science and electronic engineering.
