Rectangular solid conductive rubber strip | When a rectangular cross-section meets a solid structure - a "stabilizer" for planar sealing and high shielding effectiveness

1、 Rectangular Solid: Why is it a "rectangle" and why is it a "solid"

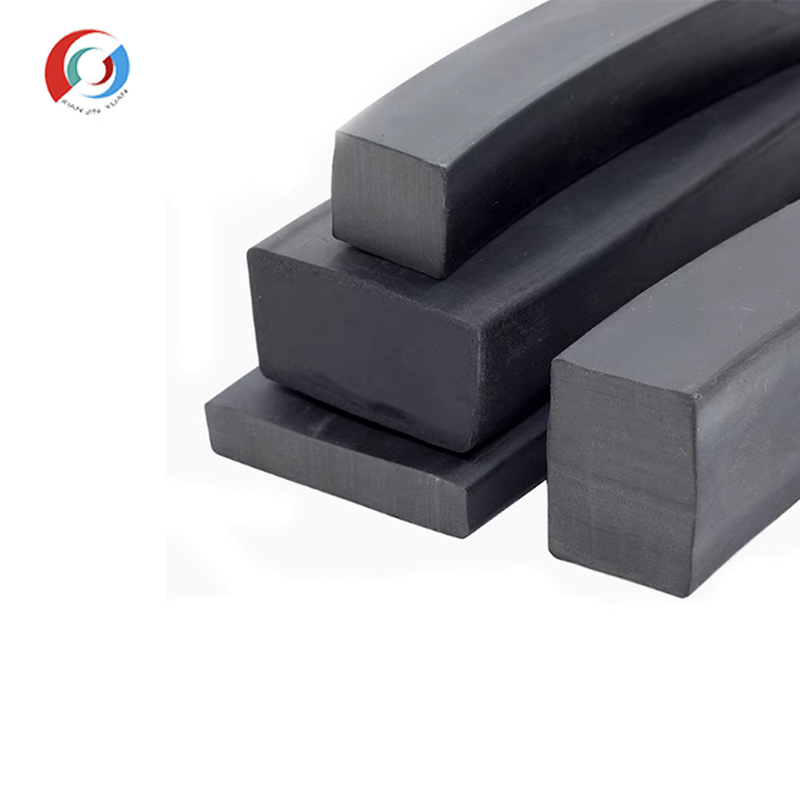

The cross-sectional design of the conductive rubber sealing strip directly determines its performance in the installation groove. The rectangular solid strip is precisely positioned in the scenario of "planar large-area sealing".

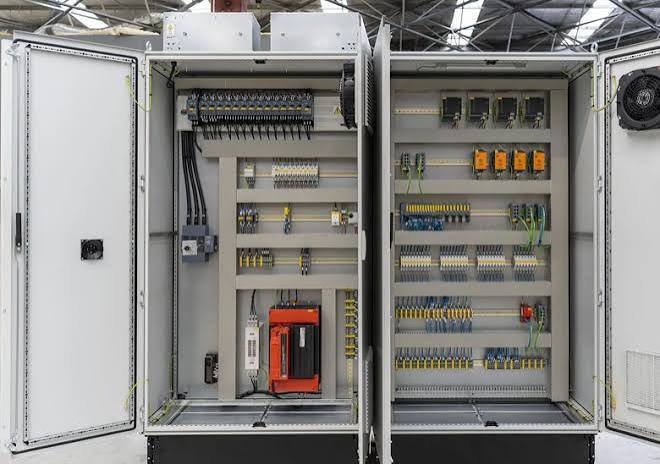

The value of a rectangular cross-section lies in its maximum contact area. The flat top and bottom surfaces of the rectangle can form a larger effective contact area with the installation plane than the O-shape and D-shape. In scenarios where large-area planar sealing is required for cabinet door frames, panel interfaces, electrical cabinets, etc., the rectangular design ensures that the pressure distribution of the conductive rubber strip is more uniform and the sealing is more reliable after compression. The same sealing strip plays both EMI shielding and environmental sealing roles simultaneously.

The value of solid structures lies in the uniformity of pressure transmission. Solid rectangular bars generate uniform sealing pressure through the deformation of the material itself during compression. Elastic gaskets have excellent resistance to compression permanent deformation and can maintain reliable shielding and sealing effects throughout the entire life cycle of the equipment. In scenarios such as cabinet doors and maintenance covers that require stable closing force and repeated opening and closing, the pressure distribution uniformity and long-term reliability advantages of solid structures are particularly prominent.

The shielding efficiency of conductive rubber can reach 90dB-120dB in the range of 20MHz-20GHz. The rectangular strip with silver plated copper filler can achieve a noise shielding level of 115dB at the 2GHz frequency point. 115dB means that 99.99999999% of electromagnetic waves are effectively blocked - enough to meet the strict EMC standards of military electronic equipment.

2、 MIL-DTL-83528: Military Pass with Rectangular Solid Strip

Rectangular solid conductive rubber strip is one of the few conductive sealing products with exclusive military standards.

MIL-DTL-83528/9E-2013 is a standardized document issued by the US Department of Defense, specifically specifying the material and technical requirements for conductive and shielding gaskets. This standard applies to elastomeric materials used in electronic devices, primarily for shielding against electromagnetic interference (EMI) and radio frequency interference (RFI). The standard specifies in detail the material properties of solid rectangular strip gaskets, including requirements for conductivity, elasticity, durability, and environmental adaptability. The standard aims to ensure the reliability of gasket materials in harsh environments such as military and aerospace.

The standard requires conductive elastomers to meet specific volume resistivity indicators. Silver based fillers can usually compress the volume resistivity to the order of 0.002-0.008 Ω· cm. Products certified by MIL-DTL-83528 meet military grade requirements in key indicators such as conductivity, shielding effectiveness, and environmental tolerance, and can be included in the qualified product list of the Defense Logistics Agency.

3、 Packing system determines performance boundary: from commercial grade to military grade

The selection of conductive filler for rectangular solid conductive rubber strips directly determines the conductivity, shielding effectiveness, and environmental tolerance of the product.

The silver plated copper system provides the highest level of shielding effectiveness. Copper silver plated conductive rubber has excellent conductivity, with a noise shielding level of up to 115dB at 2GHz frequency, suitable for military use and high-level EMI shielding scenarios. Silver plated copper filled fluorosilicone rubber elastomer can maintain stable performance over a wide temperature range.

The silver plated aluminum system has excellent galvanic compatibility in aluminum chassis scenarios. Aluminum silver plated conductive rubber has excellent shielding performance and smoke resistance, and is a military grade filling material suitable for complex climates.

The nickel/graphite system has outstanding cost-effectiveness, ensuring good shielding effectiveness while being more cost competitive. It is suitable for cost sensitive scenarios such as commercial communication equipment and industrial chassis. The rectangular strip filled with nickel/graphite can achieve a noise shielding level of 100dB at the 2GHz frequency point.

Silver plated glass and pure silver systems respectively cover different ranges between performance and cost. The base material can also be flexibly selected - silicone rubber (-55 ℃ to 160 ℃), fluorosilicone rubber (resistant to fuel and solvents), EPDM, etc., corresponding to different temperature and medium resistance requirements. Some products can meet the temperature requirements of -55 ℃ to 200 ℃.

Advanced Institute Technology can flexibly choose the combination of conductive filler system and matrix material according to customers' requirements for shielding effectiveness, environmental tolerance, and cost budget.

4、 Three major application battlefields: from 5G base stations to military electronics

5G communication and data centers are one of the areas with the highest demand for rectangular solid conductive rubber strips. The rapid development of emerging industries such as 5G communication, new energy vehicles, and smart wearable devices has put forward higher requirements for electromagnetic shielding and electrostatic protection. In 5G base stations, communication cabinets, and RF modules, the gaps between the chassis door frames and panel interfaces are the main channels for electromagnetic leakage. The rectangular solid strip can be directly installed in the sealing groove, with a flat top and bottom surface tightly attached to the installation surface, while completing EMI shielding and environmental sealing. Plays a critical role in communication base stations that require high waterproof levels and excellent electromagnetic shielding effectiveness. Electronic device manufacturing is the largest application field of conductive rubber gaskets.

The military and aerospace industries represent the application fields with the highest reliability requirements for rectangular solid conductive rubber strips. The rectangular solid conductive rubber strip can meet the strict requirements of the US military standard MIL-DTL-83528. In military electronic chassis, radar systems, and ship electronic equipment, rectangular solid bars perform dual tasks of environmental sealing and electromagnetic shielding in flat sealed scenarios. Widely used in aerospace, aviation and other fields. Conductive rubber gaskets also occupy an important share in the aerospace industry.

Automotive electronics and industrial control are the fastest-growing application directions for rectangular solid conductive rubber strips. The battery management system and high-voltage wiring harness of new energy vehicles have become important driving forces for demand growth. Vehicle electronic control units, sensors, medical diagnostic equipment, industrial control chassis, etc. have dual requirements for electromagnetic compatibility and sealing protection. Conductive rubber can be widely used in fields such as anti electromagnetic information leakage, anti electromagnetic interference, electromagnetic compatibility, and electromagnetic sealing.

5、 Selection points: How to choose the right rectangular solid conductive rubber strip for your device?

When engineers select rectangular solid conductive rubber strips, it is recommended to start from the following dimensions:

The packing system is the first choice. It is recommended to choose silver plated copper or silver plated aluminum system for military and high-end communication scenarios (shielding effectiveness> 110dB@2GHz ）； Commercial equipment and general industrial scenarios can choose nickel/graphite system (shielding effectiveness)~ 100dB@2GHz ）.

The cross-sectional size determines the installation adaptability. Rectangular solid bars support customization with multiple combinations of width and height. Common specifications include various sizes such as 0.81mm × 25.40mm. The matching cross-sectional size should be selected based on the actual size of the installation slot.

The compression amount is related to the balance between shielding and sealing. The recommended compression ratio for solid elastomers is 5% -10%. Overvoltage may cause the conductive path to be squeezed apart and accelerate permanent deformation.

Environmental tolerance determines long-term lifespan. Need to evaluate the working temperature range (silicone rubber substrate -55 ℃ to 160 ℃, fluorosilicone rubber can withstand fuel and solvents), chemical medium contact, and flame retardant level requirements (UL94 V-0 optional).

Advanced Institute Technology provides full process technical support from material selection, sample trial production to batch delivery.

The global market for conductive rubber gaskets is expected to reach $690 million by 2032, with a compound annual growth rate of 4.5%. The global EMI shielding gasket market is estimated to be worth $332 million in 2024 and is expected to reach $727 million by 2031. Driven by the deployment of 5G/6G communication, military electronic upgrades, and the deep evolution of automotive electrification and intelligence, rectangular solid conductive rubber strips are becoming the preferred solution for more and more engineers to meet the needs of large-area EMI sealing in flat surfaces, thanks to their unique advantages of "stable fit, uniform pressure, and long service life".

Advanced Institute (Shenzhen) Technology Co., Ltd. will continue to deepen its expertise in the field of conductive elastomer extrusion molding, providing customers with higher performance and more reliable conductive sealing solutions through precision technology and continuous innovation.
