Gilded conductive cloth | Precision art of technology and material integration

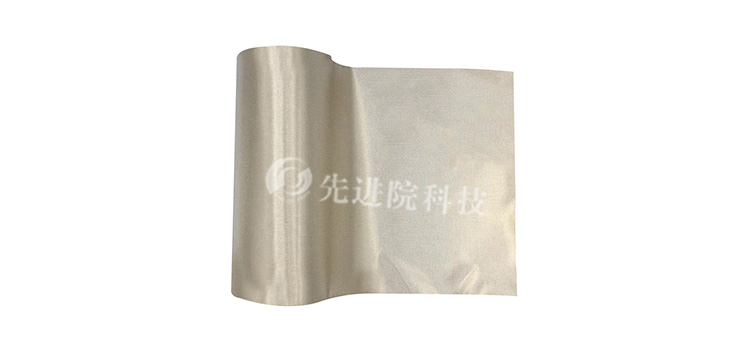

At the construction site of 5G communication base stations, engineers are struggling with electromagnetic shielding issues; Engineers need to address the range degradation caused by high-frequency interference in the battery compartment of new energy vehicles; In medical imaging equipment, microcurrent interference may cause diagnostic errors. These seemingly disparate scenes all point to a key material in common——Gold plated conductive clothThis composite material with a thickness of only 0.05-0.3mm is reshaping the high-end electronic manufacturing field at an annual market growth rate of 15%, driven by the deep integration of materials science, precision manufacturing, and engineering applications.

1、 Substrate selection: the genetic code that determines performance

According to data from the Advanced Institute of Science and Technology Laboratory, the diameter error of the substrate fibers needs to be controlled within ± 0.5 μ m to ensure uniform adhesion of the metal coating. Polyester fiber has become the preferred substrate for high-frequency communication equipment due to its tensile strength of 2.3 GPa and elongation at break of 18%; Nylon fibers can maintain a deformation rate of less than 0.3% at extreme temperatures ranging from -70 ℃ to 150 ℃, and are widely used in the aerospace industry; After special treatment, cotton fibers exhibit excellent biocompatibility in medical devices.

A certain satellite communication project once encountered signal attenuation problems, and after testing, it was found that the conductive cloth was brittle in the space radiation environment. The advanced technology team of the institute successfully solved this technical problem by replacing the substrate with aramid fiber and using a 0.08 μ m gold plating layer to maintain 98% conductivity stability at a high temperature of 200 ℃. This case confirms the decisive role of substrate selection in the performance of conductive fabrics.

2、 Vacuum evaporation: precise control of nanoscale processes

In a vacuum evaporation chamber with a diameter of 3 meters, palladium metal evaporates at a speed of 3000 revolutions per second, forming a metal vapor flow with a diameter of 0.01 μ m. This process requires precise control of the evaporation rate (0.5-2 Å/s) and deposition angle (85 °± 2 °), as any slight deviation can cause pinholes or cracks in the coating.Advanced Institute of TechnologyUsing a quadrupole mass spectrometer to monitor the evaporation process in real-time, the uniformity error of the coating is controlled within ± 3%.

Magnetron sputtering technology exhibits different process characteristics. By applying a 500V DC voltage in an argon environment, the metal target material is bombarded by ions to generate an atomic current, forming a dense coating on the surface of the substrate. The deposition rate of this process can reach 100nm/min, which is three times that of vacuum evaporation, but the equipment energy consumption increases by 40%. The hybrid process developed by Advanced Institute Technology uses magnetron sputtering in critical areas to ensure performance, and vacuum evaporation in non critical areas to reduce costs, resulting in a 25% increase in product cost-effectiveness.

3、 Thickness customization: a delicate balance between performance and cost

The relationship between the thickness and performance of conductive cloth exhibits nonlinear characteristics. A product with a thickness of 0.05mm can achieve a resistance of 0.02 Ω/sq, but its tear strength is only 15N/cm; When the thickness increases to 0.2mm, the square resistance rises to 0.05 Ω/sq, but the tear strength increases to 45N/cm. Advanced Institute Technology has developed a thickness performance prediction model by establishing a material performance database, which can quickly generate optimal solutions based on customer needs.

A certain new energy vehicle battery project needs to meet the requirements of both EMI shielding efficiency>60dB and bendable radius<5mm. The technical team improved the flexibility of the material by 30% while maintaining shielding effectiveness through a combination of 0.12mm substrate and 0.03 μ m gold plating layer. This customized service has enabled Advanced Institute Technology to break through 35% of the high-end market share.

4、 Application scenario: The leap from laboratory to industrialization

In the construction of 5G base stations, gold-plated conductive cloth is made into a 0.1mm thick shielding cover to control signal attenuation within 0.2dB/m. According to actual test data from a certain operator, the use of this material reduces base station energy consumption by 8% and extends maintenance cycles to 3 years. In the medical field, 0.08mm thick gold-plated conductive cloth is used for coil shielding of MRI equipment, reducing artifact interference by 92% and significantly improving imaging quality.

The aerospace industry has more stringent requirements for materials. The 0.15mm thick conductive cloth developed by Advanced Institute Technology for a satellite project showed a conductivity degradation of only 5% after 10 Earth years of space radiation, far exceeding the industry standard of 20%. This long-term stability stems from a unique coating structure design - depositing a 0.02 μ m nickel transition layer beneath the gold layer, effectively preventing the diffusion of metal atoms.

5、 Technological Evolution: Materials Innovation for the Future

With the development of 6G communication and quantum computing, conductive fabrics are evolving towards higher frequencies and lower losses. The nano crystal gold-plated conductive cloth developed by Advanced Institute Technology has increased the operating frequency to the terahertz band and reduced the loss tangent value to below 0.001. In the field of flexible electronics, stretchable gold-plated conductive fabric achieves a deformation rate of 50%, providing a new solution for wearable devices.

6、 Industrial ecology: value chain reconstruction from materials to systems

The conductive fabric industry is forming a complete ecosystem of "materials components systems". Advanced Institute Technology and downstream enterprises jointly established a joint laboratory to develop pre formed conductive fabric components, shortening the customer's product development cycle by 40%. In the field of new energy vehicles, intelligent conductive cloth with integrated temperature sensing function can be applied in batches, reducing the amount of wire harness used by a single vehicle by 3kg.

Observing from the perspective of materials science,Gold plated conductive clothThe history of development is an evolutionary history of precision manufacturing. From substrate selection to coating process, from thickness control to application innovation, every link embodies the wisdom of engineers. With the rise of emerging technologies such as the Internet of Things and artificial intelligence, this seemingly ordinary composite material is opening up a broader application space and writing a new chapter in the integration of technology and industry.
