PET Platinum Plated Film: A Corrosion Resistant Precious Metal Thin Film Solution Empowering Flexible Sensing and High End Electronic Devices

1、 Material Innovation: Flexible Combination of PET and Platinum Metal

With the rapid development of flexible electronics, biosensing, new energy technology, and intelligent devices, traditional rigid metal electrode materials are gradually unable to meet the needs of lightweight, flexibility, and adaptability to complex environments. Flexible metalized thin films, as an important direction for connecting material science and advanced electronic manufacturing, are becoming an important foundational material for the next generation of electronic devices.

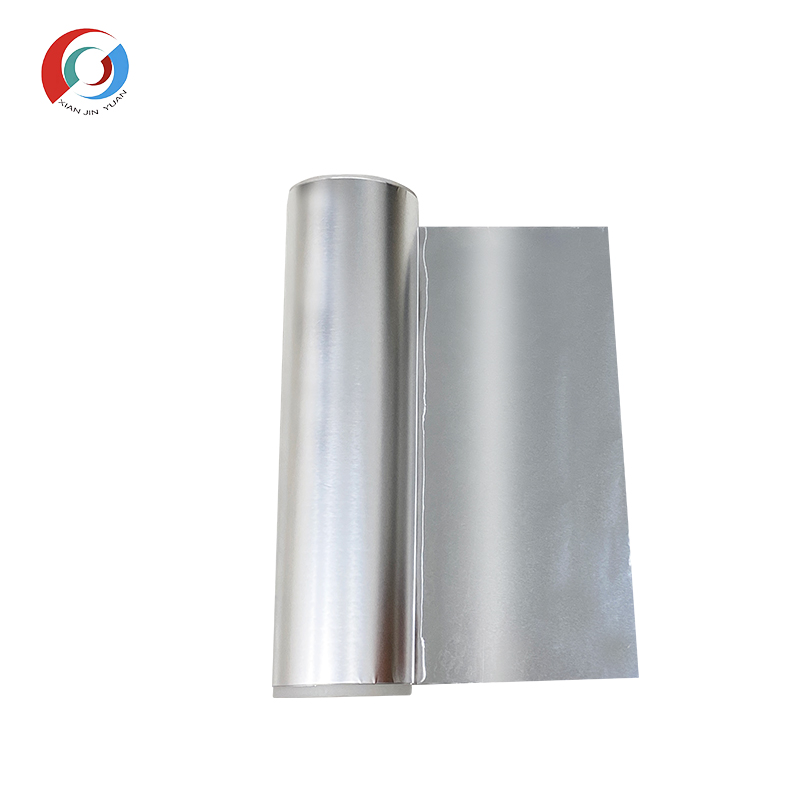

PET platinum plating film uses PET (Polyethylene Terephthalate) film as a flexible support layer, forming a high-purity platinum metal coating on its surface, enabling the material to possess both the excellent mechanical properties of PET substrate and the high stability of platinum material.

Platinum (Pt), as a typical precious metal material, has extremely strong oxidation resistance and chemical corrosion resistance, and can maintain stable performance in acidic and alkaline environments, electrochemical reactions, and long-term working conditions. Meanwhile, the excellent electrocatalytic properties of platinum make it an important material in the fields of electrochemical detection, energy conversion, and biological signal acquisition.

Advanced Institute Technology combines precious metal functional layers with polymer film substrates through flexible substrate coating technology, providing a reliable material foundation for high-performance flexible devices.

2、 Core advantage: Combining flexible structure and platinum layer performance

The biggest feature of PET platinum coated film is the complementary advantages of the "flexible substrate precious metal functional layer".

PET film has the characteristics of light weight, high dimensional stability, and excellent mechanical strength, which can meet the needs of roll to roll processing, precision cutting, and flexible assembly. With the trend of electronic devices continuously developing towards slimness, PET substrates can effectively reduce the overall weight of devices and improve product design freedom.

Platinum coating endows the material with excellent electrical and chemical properties. Compared to ordinary metal materials, platinum has better stability in high humidity, high temperature, and corrosive environments, which can reduce the risk of performance degradation during long-term use.

In addition, platinum materials have excellent electrocatalytic activity, which can promote electron transfer processes and improve electrochemical reaction efficiency. Therefore, they have important application value in sensors, electrode materials, and detection equipment.

By optimizing the coating thickness, surface treatment process, and interface bonding technology, PET platinum coated film can achieve a balance between conductivity, durability, and flexibility according to different application requirements.

3、 Advanced technology: achieving reliable bonding between flexible film and platinum layer

The key to preparing high-quality PET platinum coated film lies in solving the bonding problem between the polymer substrate and the metal coating.

Due to PET being an organic polymer material with low surface energy, direct metal plating can easily lead to insufficient adhesion. Therefore, in the actual production process, it is necessary to improve the bonding strength between PET substrate and platinum coating through surface activation treatment, plasma treatment, and bottom transition layer design.

Advanced technology combined with flexible substrate coating experience can use processes such as vacuum sputtering and vapor deposition to form a uniform and dense platinum metal layer on the surface of PET film. By controlling the vacuum environment, deposition rate, and coating structure, the uniformity and stability of the coating can be improved.

For different application scenarios, the company can provide PET substrates of different thicknesses and customized platinum layer solutions to meet customers' requirements for conductivity, corrosion resistance, and processing adaptability.

4、 Application Expansion: Covering the fields of flexible sensing, electrochemical detection, and new energy

PET platinum coated film has shown potential applications in multiple cutting-edge fields due to the excellent electrochemical properties of platinum materials and the good flexibility of PET substrates.

In the field of flexible electrochemical sensing, PET platinum coated film can be used as a working electrode or functional electrode material for detecting biomarkers, chemicals, and environmental parameters. Combining microfluidic technology and flexible electronic technology, it can be applied to wearable health monitoring devices to achieve real-time detection of human body status.

In the field of medical testing, platinum materials have been widely studied in biosensors, neural signal detection, and medical electrode directions due to their good biocompatibility and stability. PET substrate provides greater structural space for flexible device design.

In the field of new energy, platinum, as an important catalytic material, can be applied to fuel cells, electrolytic hydrogen production, and energy conversion related equipment. PET platinum coated film, in the form of flexible thin film, helps promote the development of lightweight and miniaturized energy devices.

In addition, this material can also be extended to applications in flexible heating elements, high-end detection equipment, and special environmental electronic components.

5、 Future trend: Flexible coating of precious metals drives the development of next-generation electronic technology

With the continuous development of artificial intelligence devices, smart wearables, robots, biomedicine, and new energy industries, electronic devices are evolving towards flexibility, miniaturization, and high reliability.

Flexible metalized thin films, as an important bridge connecting materials and devices, will play an increasingly important role in the future electronics industry. PET platinum coated film not only meets the conductivity requirements of traditional metal materials, but also provides a new material path for new sensors and high-performance electronic devices through the stability and catalytic properties of platinum materials.

Established in 2016, Advanced Institute (Shenzhen) Technology Co., Ltd. is a high-tech enterprise specializing in the research and production of flexible substrate coatings, shielding materials, thermal conductive materials, and precious metal functional materials. It has its own brand "Research Platinum".

The company continues to promote the integration of flexible materials and advanced manufacturing technology around precious metal coating directions such as gold plating film, silver plating film, copper plating film, and platinum plating film, providing customized material solutions for new energy, medical electronics, intelligent manufacturing, and high-end electronics industries.

In the future, Advanced Institute Technology will continue to explore innovation in precious metal thin film technology, using higher performance and more reliable flexible materials to support the development of the next generation of electronic technology.
