D-type solid conductive rubber strip: a flexible conductive solution for highly reliable electromagnetic shielding sealing

1、 Product Overview: Flexible shielding material with both conductive and sealing functions

In modern electronic devices, high-frequency signals, power modules, and high-speed data transmission systems are constantly increasing, and the electromagnetic interference (EMI) problem generated inside the equipment is becoming more prominent. Electromagnetic leakage not only affects the stability of equipment operation, but may also interfere with surrounding electronic systems. Therefore, reliable conductive sealing materials need to be used for electromagnetic shielding at the structural connections, shell gaps, and interface positions of the equipment.

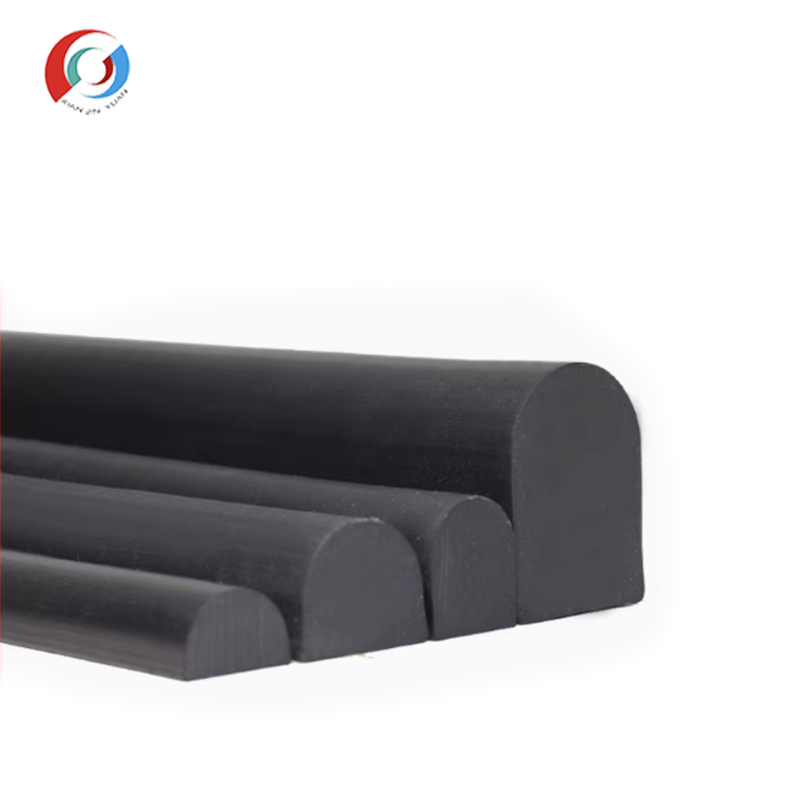

D-type solid conductive rubber strip is a composite material based on elastic silicone rubber, which forms a continuous conductive network by adding conductive fillers such as silver coated copper, silver coated aluminum, nickel coated graphite, etc. Its cross-section adopts a "D" - shaped structure, which has advantages over traditional circular rubber strips in terms of installation space utilization, compression bonding effect, and contact stability.

Advanced Institute (Shenzhen) Technology Co., Ltd. relies on its experience in the research and development of conductive composite materials to develop D-type solid conductive rubber strip products for different electromagnetic shielding needs. It can provide material formula and size customization services according to equipment structure, working environment, and shielding frequency band.

2、 Structural advantage: D-shaped cross-section design enhances installation adaptability

The shielding effect of conductive rubber strips depends not only on the conductivity of the material, but also closely related to the structural design.

The D-type solid structure combines flat and curved areas to form a stable contact surface when the product is compressed. On the one hand, a flat bottom surface is conducive to fitting with the equipment casing or installation groove, improving assembly stability; On the other hand, the curved top can provide continuous elastic pressure, allowing the material to maintain reliable contact in long-term compression environments.

Compared to ordinary circular conductive rubber strips, the D-type structure is more suitable for the interior of electronic devices with limited space, such as communication equipment cabinets, server cases, automotive electronic control modules, and precision instrument casings.

At the same time, silicone rubber substrates have good temperature resistance, aging resistance, and environmental resistance, which can meet the long-term use needs in complex industrial environments.

3、 Material technology: Building a stable conductive network to achieve efficient electromagnetic shielding

The core performance of D-type solid conductive rubber strips comes from the composite design between conductive fillers and elastic matrix.

Advanced Institute Technology adjusts the type, filling ratio, and dispersion process of conductive particles to form a uniform and continuous conductive path for conductive fillers inside silicone rubber. When compressed, conductive particles maintain effective contact with each other, thereby achieving stable current transmission capability.

According to different application requirements, the product can adopt different conductive systems:

Silver coated copper filler has high conductivity and cost advantages, making it suitable for high-performance EMI shielding applications;

Nickel coated graphite material has good environmental resistance and is suitable for industrial equipment and long-term protection scenarios;

Other composite conductive systems can be optimized based on shielding frequency, cost requirements, and usage environment.

Through material system optimization, D-type solid conductive rubber strips can meet the comprehensive needs of electronic devices for low contact resistance, high reliable shielding, and long-term stability.

4、 Performance characteristics: Meet the electromagnetic compatibility requirements of complex electronic devices

With the improvement of AI servers, the electronicization of new energy vehicles, and the development of high-speed communication equipment, the requirements for internal electromagnetic compatibility of devices are constantly increasing. D-type solid conductive rubber strips have demonstrated application advantages in multiple aspects due to their flexible structure and conductive properties.

Firstly, the product has excellent compression recovery capability. During the equipment assembly process, rubber materials can fill structural gaps and reduce the risk of electromagnetic leakage caused by mechanical tolerances.

Secondly, conductive rubber has good flexibility and can adapt to slight vibrations, thermal expansion, and structural changes that occur during equipment operation, improving long-term reliability.

In addition, silicone rubber materials have good weather resistance and temperature resistance, and can be applied to complex environments such as outdoor communication equipment, automotive electronic systems, and industrial control equipment.

5、 Application areas: covering communication, new energy vehicles, and intelligent manufacturing scenarios

Communication equipment and 5G base stations

5G communication equipment contains a large number of high-frequency and high-speed electronic components, which puts higher demands on electromagnetic compatibility performance. D-type solid conductive rubber strips can be used for equipment casings, module interfaces, and connection parts to achieve electromagnetic leakage control.

New energy vehicle electronic system

The electric drive system, battery management system (BMS), and intelligent driving module in new energy vehicles all involve a large number of electronic control units. Conductive rubber sealing materials can help reduce electromagnetic interference between modules and improve the stability of the vehicle's electronic system.

AI servers and data center equipment

With the rapid development of AI computing and high-performance servers, the electromagnetic interference problem caused by high-speed chips and power systems inside servers has become more apparent. D-type conductive rubber strips can be used for server cabinets, equipment panels, and module connection positions to provide shielding protection for high-density electronic systems.

Aerospace and Industrial Equipment

Aerospace equipment requires extremely high reliability and environmental adaptability. Conductive rubber materials, with their flexibility, environmental resistance, and long-term stability, can be used for electromagnetic shielding and sealing protection of precision electronic equipment.

6、 Customization capability: meet the shielding needs of different devices

There are differences in the size, conductivity, and environmental adaptability requirements for conductive rubber strips in different application fields.

Advanced Institute Technology can provide customized services for D-type solid conductive rubber strips according to customer needs, including:

• Design with different cross-sectional dimensions;
• Selection of different conductive filler systems;
• Adjustment of different hardness levels;
• Optimization of length, shape, and installation method.

Based on the research and development of flexible materials, conductive composite technology, and large-scale production capabilities, the company can provide complete electromagnetic shielding material solutions for customers in communication, new energy vehicles, electronic manufacturing, and industrial equipment.

7、 Industry Development: Flexible Conductive Materials Boost High Reliability Development of Electronic Devices

With the continuous development of artificial intelligence, high-speed communication, new energy vehicles, and intelligent manufacturing industries, electronic devices are evolving towards higher integration, higher frequency, and smaller size. Electromagnetic compatibility has become one of the key factors affecting equipment performance and reliability.

D-type solid conductive rubber strips, as an important application form of flexible conductive materials, provide more reliable shielding and sealing solutions for modern electronic devices through material innovation and structural optimization.

Advanced Institute (Shenzhen) Technology Co., Ltd. was established in 2016 and is a high-tech enterprise specializing in the research and production of shielding materials, insulation materials, thermal conductive materials, and precious metal coating technology. It has its own brand "Research Platinum". The company continues to deepen its expertise in the field of conductive composite materials, providing customers with product solutions such as conductive rubber, conductive paste, electromagnetic shielding materials, and flexible electronic materials.

In the future, Advanced Institute Technology will continue to promote innovation in flexible functional materials, providing higher performance material support for new energy vehicles, artificial intelligence devices, communication technology, and high-end electronic manufacturing industries.
