Wireless charging receiver magnetic isolation sheet: a key magnetic material solution to improve the wireless charging efficiency of smart terminals

1、 Product Overview: Magnetic Field Control Core Materials in Wireless Charging Systems

In recent years, with the development of intelligent terminal devices towards slimness and multifunctionality, wireless charging technology has become one of the important functions of mobile electronic devices. From smartphones to smartwatches, and then to wireless charging systems for new energy vehicles, electromagnetic energy transmission is gradually replacing traditional wired connection methods.

However, during wireless charging, the alternating magnetic field generated by the transmitting coil needs to accurately penetrate the receiving coil to achieve efficient energy conversion. Due to the presence of metal structures, battery components, and other electronic components inside electronic devices, some magnetic fields are prone to scattering and loss, which not only reduces charging efficiency but may also cause electromagnetic interference (EMI) problems.

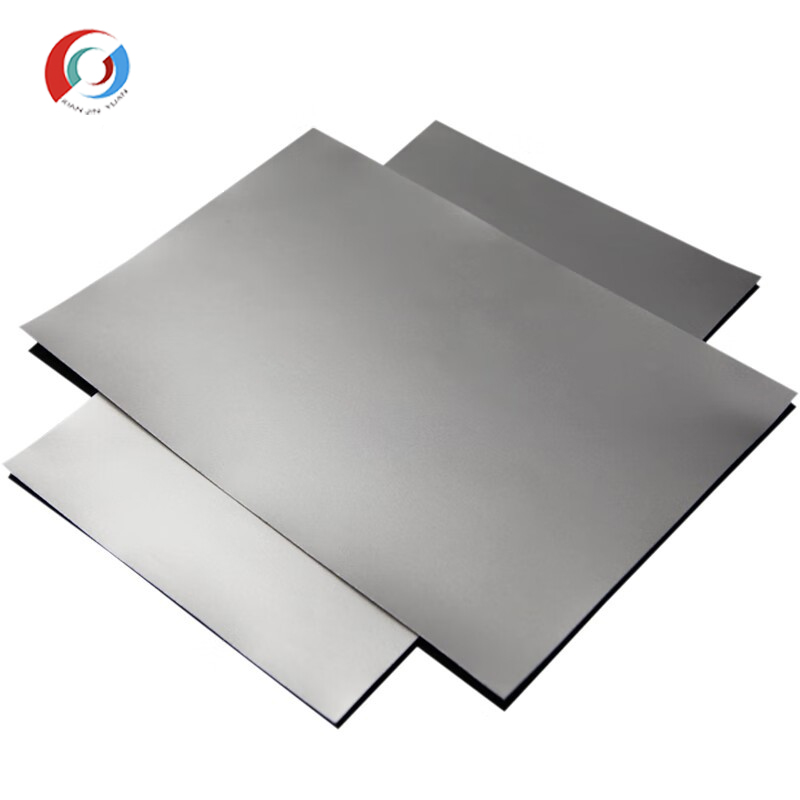

The magnetic isolation sheet of wireless charging receiver is an important material to solve this problem. It is usually located between the wireless charging coil and the internal structure of the device, guiding and concentrating the magnetic field through high permeability magnetic materials, making the magnetic flux more concentrated in the receiving coil area, thereby improving wireless charging efficiency and reducing the impact of stray magnetic fields on surrounding components.

Advanced Institute (Shenzhen) Technology Co., Ltd. relies on the research and development of magnetic materials and functional material composite technology to provide high-performance magnetic isolation products for wireless charging equipment, meeting the needs of high efficiency, miniaturization, and reliability in the fields of consumer electronics, new energy vehicles, and intelligent hardware.

2、 Material technology: High permeability soft magnetic materials achieve efficient magnetic field management

The core performance of wireless charging magnetic separators depends on the magnetic material system. Excellent magnetic isolation materials require high magnetic permeability, low magnetic loss, and good mechanical stability to ensure continuous and stable operation of equipment in high-frequency alternating magnetic field environments.

At present, mainstream wireless charging separators usually use ferrite, nanocrystalline materials, and composite soft magnetic materials. Among them, ferrite materials have high electrical resistivity and low eddy current losses, making them suitable for wireless charging scenarios in consumer electronics; Nanocrystalline soft magnetic materials have demonstrated application advantages in high-power wireless charging and precision equipment fields due to their higher magnetic permeability and excellent frequency characteristics.

Advanced Institute Technology optimizes material formulations, designs composite structures, and precision machining processes to achieve good magnetic field aggregation ability and stability performance of magnetic separators while maintaining a lightweight structure.

For different device requirements, the company can provide wireless charging magnetic insulation products with different thicknesses, sizes, and magnetic performance levels to meet the application needs from small smart devices to high-power wireless charging systems.

3、 Technical advantage: Balancing lightweight design with improved wireless charging performance

As smartphones and wearable devices continue to pursue thinner body designs, the installation space for wireless charging modules is becoming increasingly limited. Traditional magnetic materials are susceptible to thickness limitations, mechanical strength, and processing performance, while new composite magnetic isolation materials are driving the development of wireless charging technology towards higher integration.

The wireless charging receiver's magnetic isolation chip has the following technical advantages:

Efficient magnetic field aggregation capability: By guiding the magnetic flux path through high permeability materials, the magnetic field utilization efficiency of the receiving coil is improved and energy loss is reduced.

Low loss characteristics: Targeting the high-frequency alternating magnetic field generated during wireless charging, optimizing material loss characteristics, reducing heat generation, and improving system stability.

Lightweight and flexible design: using thin film processing technology, it can adapt to space limited devices such as mobile phones and smart watches, achieving high integration layout.

Electromagnetic compatibility optimization: effectively reduces stray magnetic fields during wireless charging, and minimizes the impact on NFC, communication modules, and other electronic components.

These properties make wireless charging magnetic separators an important functional material to enhance the wireless charging experience.

4、 Application Development: From Smartphones to Wireless Charging for New Energy Vehicles

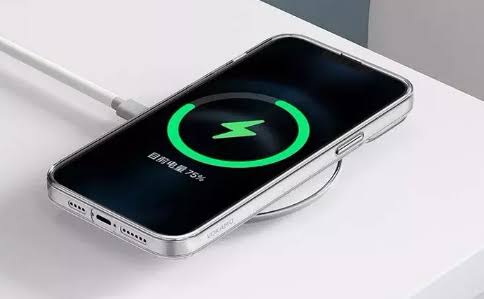

Wireless charging for smartphones

Smartphones are one of the most mature application areas for wireless charging magnetic separators. With the continuous improvement of fast charging power, the importance of internal magnetic field management in equipment has further increased. Magnetic separators can help optimize coil efficiency, improve charging speed, and reduce the impact of magnetic fields on internal electronic components of mobile phones.

Smart wearable devices

Smart watches, smart bracelets, and wireless earphones have the characteristics of small size and compact structure, which puts higher demands on the thickness and performance of magnetic materials. Thin and lightweight magnetic separators can provide stable magnetic field control capabilities in limited spaces.

Wireless charging for new energy vehicles

With the intelligent development of new energy vehicles, wireless charging technology is becoming an important direction for future energy replenishment methods. The wireless charging system for automobiles needs to face higher power, more complex environments, and stricter safety requirements. High performance magnetic materials can help improve energy transmission efficiency and enhance the system's electromagnetic compatibility.

Smart Home and IoT Devices

In the future, a large number of IoT devices and smart terminals will adopt wireless power supply. Magnetic isolation materials will play an important role in smart homes, industrial sensors, and portable electronic devices.

5、 Process manufacturing: promoting the development of high-performance and high reliability magnetic separators

Wireless charging magnetic separators not only require excellent magnetic properties, but also need to meet the requirements for dimensional accuracy, mechanical strength, and consistency in the electronic manufacturing process.

Advanced Institute Technology focuses on the research and development of functional materials and large-scale manufacturing capabilities, continuously optimizing magnetic material composite, precision cutting, surface treatment, and structural design processes to ensure stable performance and mass production capacity of products.

Through collaborative optimization of materials and processes, the company can provide customized solutions based on customer application needs, including different size specifications, thickness designs, magnetic property adjustments, and structural matching services.

6、 Industry Trend: Magnetic Materials Boost the Development of Wireless Energy Era

With the continuous improvement of the wireless charging ecosystem, magnetic materials are becoming an important foundational material for connecting electronic devices with wireless energy. From consumer electronics to new energy vehicles, from smart hardware to industrial equipment, high efficiency, miniaturization, and high reliability will become the core direction of wireless charging technology development.

As an important component of magnetic field management, the magnetic separator of wireless charging receivers will continue to promote the performance improvement of wireless charging systems. In the future, with the rapid growth of AI terminals, smart cars, and IoT devices, the demand for high-performance magnetic materials will also further expand.

Advanced Institute (Shenzhen) Technology Co., Ltd. focuses on the research and development of shielding materials, absorbing materials, thermal conductive materials, flexible electronic materials, and precious metal coating technology, and has its own brand "Research Platinum". The company continues to promote innovation in functional materials, providing reliable material solutions for the fields of consumer electronics, new energy vehicles, communication equipment, and high-end electronic manufacturing.
