Mobile phone magnetic isolation sheet absorbing material: solving electromagnetic interference problems in wireless charging and high-frequency communication

1、 In the era of high-speed integration of smartphones, electromagnetic management has become a key challenge

In recent years, smartphones have evolved from a single communication device to a comprehensive intelligent terminal that integrates AI computing, wireless charging, satellite communication, millimeter wave communication, multi camera systems, and high-performance processing platforms.

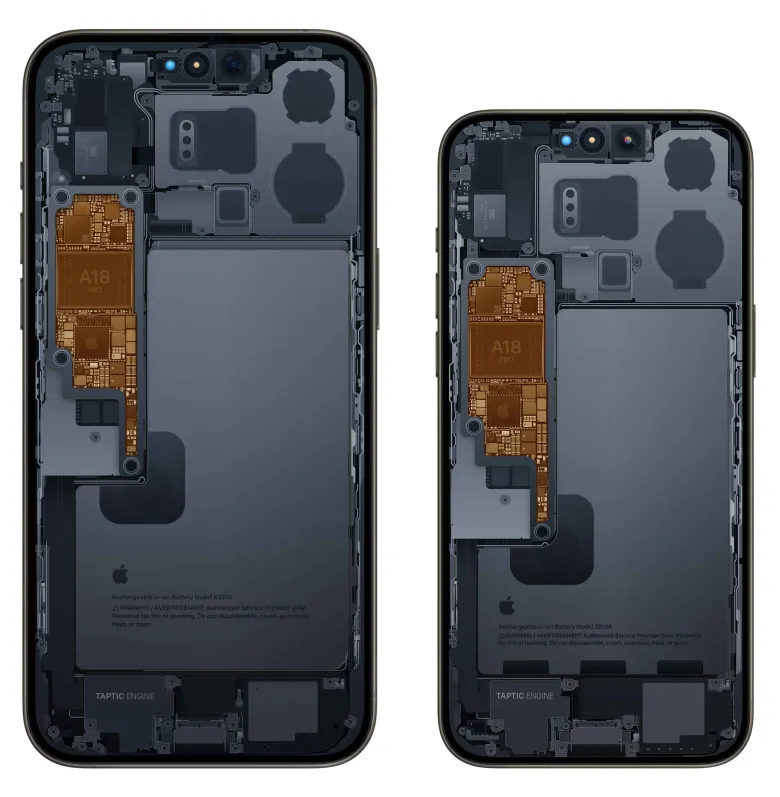

With the continuous compression of the internal space of mobile phones, the distance between electronic modules such as motherboards, wireless charging coils, antennas, camera modules, and battery management systems is getting closer, and the electromagnetic signals generated by different modules are easily influenced by each other. For example, the magnetic field generated during wireless charging may interfere with nearby electronic components, and the electromagnetic noise generated by high-frequency chip operation may also affect communication stability.

Therefore, in modern intelligent terminal design, in addition to improving chip performance and battery capacity, electromagnetic compatibility (EMC) design has become an important factor in determining product reliability.

Mobile phone magnetic isolation sheet absorbing materials are a new type of electromagnetic functional material developed in this context, which optimizes the internal electromagnetic environment of devices by guiding, absorbing, and dissipating electromagnetic waves.

2、 The working principle of the absorbing material for mobile phone magnetic isolation: synergistic optimization of magnetic isolation and absorption

The absorbing material of mobile phone magnetic isolation sheet is usually composed of a magnetic functional layer, a flexible substrate, and a protective layer. Its core function is to use the material's own magnetic permeability to change the electromagnetic field propagation path.

When electronic devices are working, the high-frequency electromagnetic waves generated internally enter the absorbing material, and the magnetic particles convert some of the electromagnetic energy into thermal energy through the magnetic loss mechanism, thereby reducing electromagnetic wave reflection and interference. Meanwhile, high magnetic permeability materials can guide the magnetic flux generated by wireless charging, improving the efficiency of magnetic field utilization.

Unlike traditional metal shielding materials, absorbing materials do not simply block electromagnetic waves, but reduce the propagation of electromagnetic energy through "absorption conversion", making them more suitable for mobile terminals with limited space and strict requirements for weight and thickness.

Advanced Institute Technology achieves a balance between absorption performance, thickness control, and mechanical reliability through optimized magnetic material formulations and flexible composite processes, enabling materials to meet the long-term usage needs of precision electronic devices such as smartphones.

3、 Core Performance Advantage: Lightweight Design Meets Consumer Electronics Needs

With the continuous pursuit of thinner body and higher integration in the development trend of smartphones, the electromagnetic performance and structural adaptation requirements of the magnetic barrier absorbing material need to be met simultaneously.

The advanced technology mobile phone magnetic isolation sheet absorbing material has the following characteristics:

High magnetic permeability enhances electromagnetic energy management capability

The material uses high-performance magnetic media and optimizes magnetic loss characteristics to effectively absorb electromagnetic waves in specific frequency bands, which can help reduce electromagnetic interference during wireless charging, NFC communication, and high-speed electronic module operation.

Lightweight and flexible, suitable for complex internal spaces

The internal structure of the mobile phone is highly compact, and the materials need to have good flexibility and processing adaptability. Flexible wave absorbing plates can be cut and bonded according to the device structure, suitable for installation in curved surfaces, miniaturization, and irregular spaces.

Low loss, improving wireless charging efficiency

In wireless charging applications, magnetic separators can reduce the diffusion of magnetic fields to other areas inside the device, improve the magnetic coupling efficiency between coils, thereby reducing energy loss and improving charging stability.

Stable and reliable, meeting long-term usage requirements

The material has been designed for reliability and can adapt to temperature changes, mechanical vibrations, and long-term operating environments in consumer electronic products, ensuring long-term stable operation of the equipment.

4、 Application scenario: From smartphones to next-generation smart terminals

With the continuous upgrading of wireless connectivity technology, the application range of electromagnetic absorbing materials for mobile phone isolation is constantly expanding.

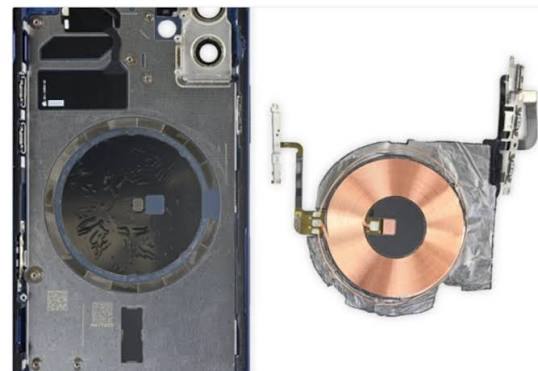

In the field of wireless charging, magnetic separators are widely used in mobile phone wireless charging modules. By optimizing the magnetic field transmission path, charging efficiency is improved and the impact on surrounding components is reduced.

In the field of NFC near-field communication, absorbing materials can reduce the impact of metal structures, batteries, and other electronic components on RF signals, and improve the communication stability of functions such as payment, access control, and identity recognition.

In the field of 5G and AI smartphones, the high-speed computing capability brought by high-performance chips has increased the complexity of the internal electromagnetic environment of devices. Absorbing materials can help reduce electromagnetic noise during high-speed signal operation, providing a more stable hardware environment for AI computing, edge intelligence, and multimodal interaction.

In addition, the absorbing material of mobile phone magnetic isolation sheets can also be extended to electronic terminals such as smart watches, wireless headphones, tablets, AR/VR devices, and car intelligent cockpits.

5、 Trends in Material Technology Development: Targeting AI Terminals and Next Generation Communication Devices

The development trend of future intelligent terminals will further promote the upgrading of electromagnetic functional materials.

With the development of AI smartphones, foldable screen devices, satellite communication terminals, and high-speed wireless communication technology, the number of electronic modules inside devices is constantly increasing, which puts higher demands on electromagnetic compatibility design.

The new generation of mobile phone magnetic isolation absorbing materials will develop towards higher magnetic permeability, lower loss, thinner thickness, and multi band compatibility. At the same time, through nano magnetic materials, flexible composite technology, and precision coating processes, material performance can be further improved to achieve more precise electromagnetic control.

Advanced Institute (Shenzhen) Technology Co., Ltd. has long focused on the research and development of electromagnetic shielding materials, absorbing materials, flexible substrate coatings, and functional composite materials, and has its own brand "Research Platinum". The company provides integrated solutions from material design to product customization in the fields of consumer electronics, new energy vehicles, communication equipment, and more.

In the future, Advanced Institute Technology will continue to promote innovation in high-performance electromagnetic functional materials, providing reliable material support for intelligent terminals, electromagnetic compatibility design, and next-generation electronic devices.
