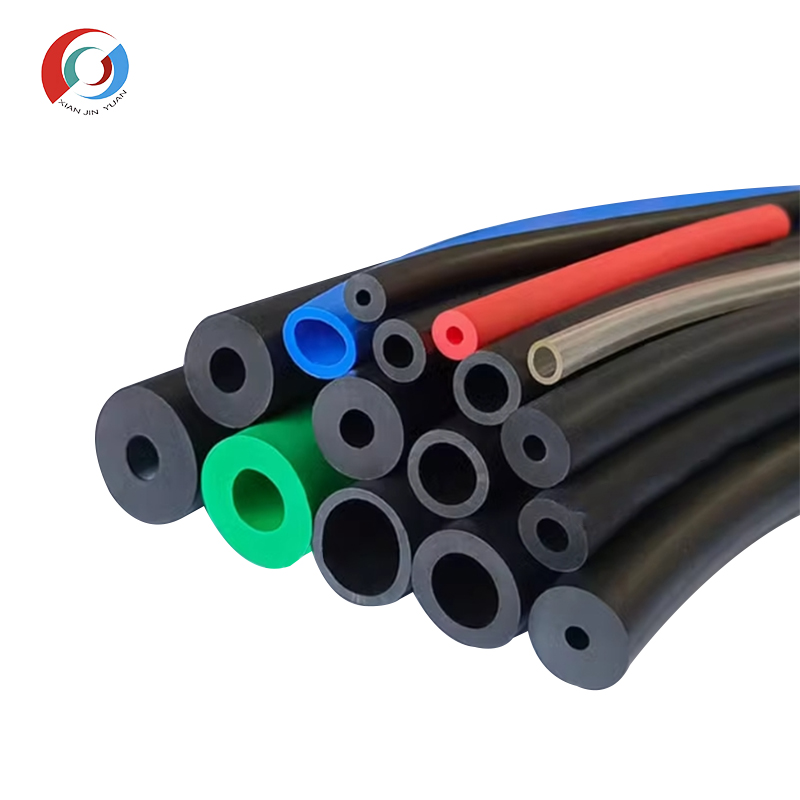

O-shaped hollow conductive rubber strip | When O-shaped seal meets hollow structure - perfect balance of low closing force and high shielding effectiveness

1、 Hollow O-shape: When "lightweight" becomes a must-have for sealing design

There are two main cross-sectional shapes of conductive rubber sealing strips: solid and hollow. The difference between the two directly determines the mechanical properties and application boundaries of the product.

Solid O-shaped bars have a simple structure and high strength, but have limited compression capacity. The volume of a solid elastic body does not change during compression - the material is pushed aside as much as it is pressed down. This means that the installation slot needs to reserve sufficient "flow space", otherwise the material cannot be fully compressed, and the shielding effectiveness is greatly reduced. The recommended compression amount for solid bars is only 5% -10%.

Hollow O-ring is completely different. The internal cavity allows the rubber strip to absorb stress through deformation rather than volume transfer when compressed - air can be compressed and the volume can be reduced. This makes the recommended compression amount for hollow O-strips reach 10% -50%. A larger compression capacity means greater tolerance for installation tolerances and more reliable sealing.

More importantly, the hollow structure brings lower closing force. The closing force required for hollow O-shaped strips to reach the same sealing pressure is much lower than that of solid strips. For scenarios such as cabinet doors and maintenance covers that require frequent opening and closing, low closing force means more convenient operation, lighter locking mechanism, and lower risk of door frame deformation.

2、 Data Speaking: The "Hard Index" of O-shaped Hollow Conductive Rubber Strips

The performance of O-shaped hollow conductive rubber strips ultimately needs to be answered with data.

Shielding effectiveness is the core indicator. The shielding effectiveness of conductive rubber can reach 90dB-120dB in the range of 20MHz-20GHz, and the formula using pure silver particles can even reach over 120dB. Taking the hollow O-shaped strip filled with silver plated aluminum as an example, the shielding efficiency reaches 111dB at 10MHz, 120dB at 100MHz, 121dB at 1GHz, and remains at 105dB even in the high frequency range of 18GHz. 120dB means that 99.999999999% of electromagnetic waves are effectively blocked - enough to meet the strict EMC standards of military electronic equipment. Parker's beautiful hollow O-shaped conductive elastomer extruded gasket has a shielding efficiency of 95dB to 120dB at the 2GHz frequency point.

Compressive performance is the core advantage of hollow structures. The recommended compression ratio for solid elastomers is 5% -10%, while the recommended compression ratio for hollow extruded parts can reach 10% -50%. A larger compression capacity means greater tolerance for changes in installation groove tolerances, and can maintain stable sealing pressure under different temperatures and working conditions. The deflection of the hollow O-ring can reach 50% - which means that in extreme cases, it can almost be 'flattened' in half without damage.

The working temperature range determines the environment in which the material can work. The hollow O-ring of silicone rubber matrix can be used for a long time in a wide temperature range of -55 ℃ to 160 ℃, and some high-temperature resistant formulas can even reach 220 ℃. By using fluorosilicone rubber matrix, it can also withstand the erosion of fuel and solvents.

In terms of filler system and conductivity, different fillers correspond to different volume resistivity. The volume resistivity of silver plated aluminum system can be as low as 0.008 Ω· cm, while nickel plated graphite system is about 2.2 Ω· cm. Advanced Institute Technology can flexibly choose conductive filler systems based on customer requirements for shielding effectiveness, environmental tolerance, and cost budget - from pure silver, silver plated copper, silver plated aluminum to nickel plated graphite, nickel carbon, etc., providing a full range of products from commercial grade to military grade.

3、 Three major application battlefields: from military chassis to 5G base stations

The military and aerospace industries are the most dominant fields for O-shaped hollow conductive rubber strips. The O-shaped hollow conductive rubber strip was initially developed for high-performance shielding requirements, mainly for military applications. It is widely used in the anti electromagnetic interference of small and medium-sized military electronic chassis and waveguide systems, aerospace, aviation, ships and other military electronic equipment. The product can meet the strict requirements of the US military standard MIL-DTL-83528C (formerly MIL-G-83528) - this specification establishes a complete technical standard for conductive elastomer shielding gaskets from material composition to performance testing. At the gaps of military electronic chassis, hollow O-rings simultaneously complete environmental sealing and electromagnetic shielding sealing.

5G communication and data centers are one of the areas with the highest demand for O-shaped hollow conductive rubber strips. In 5G base stations, communication cabinets, and RF modules, chassis gaps and interfaces are the main channels for electromagnetic leakage. The O-shaped hollow conductive rubber strip can be directly installed in the standard O-shaped groove, while completing EMI shielding and environmental sealing. Conductive rubber can be widely used in fields such as anti electromagnetic information leakage, anti electromagnetic interference, electromagnetic compatibility, and electromagnetic sealing. In scenarios such as 5G communication, high-frequency electronic products, and control equipment, O-shaped hollow conductive rubber strips occupy a place with their dual advantages of high shielding effectiveness and low closing force.

Automotive electronics and industrial control are the fastest-growing application directions for O-shaped hollow conductive rubber strips. Vehicle electronic control units, sensors, medical diagnostic equipment, industrial control chassis, etc. have dual requirements for electromagnetic compatibility and sealing protection. The O-shaped hollow conductive rubber strip combines EMI shielding and environmental sealing functions, making installation easy. In scenarios such as communication base stations that require high waterproof levels and excellent electromagnetic shielding effectiveness, O-shaped hollow conductive rubber strips also play a key role.

4、 Selection points: How to choose the right O-shaped hollow conductive rubber strip for your device?

When engineers select O-shaped hollow conductive rubber strips, it is recommended to start from the following dimensions:

The packing system is the first choice. For military and high-end communication scenarios, it is recommended to choose silver plated aluminum or silver plated copper systems (shielding effectiveness>110dB); Commercial equipment and general industrial scenarios can choose nickel plated graphite or nickel carbon systems (with outstanding cost-effectiveness).

The cross-sectional size determines the installation adaptability. Hollow O-ring supports customization of various combinations of outer diameter and wall thickness. The matching cross-sectional size should be selected based on the actual size of the installation slot.

The compression amount is related to the balance between shielding and sealing. The recommended compression ratio for hollow O-shaped bars is 10% -50%. It is recommended to comprehensively determine the actual compression amount based on the door frame closing force, installation groove depth, and sealing grade requirements.

Environmental tolerance determines long-term lifespan. Need to evaluate the working temperature range (-55 ℃ to 200 ℃ optional), chemical medium contact conditions, and flame retardant level requirements (UL94 V-0 optional).

Advanced Institute Technology provides full process technical support from material selection, sample trial production to batch delivery.

The global market for conductive elastomers is continuously growing. Driven by the upgrading of military electronics, deployment of 5G/6G communication, and deep evolution of automotive electrification and intelligence, O-shaped hollow conductive rubber strips are becoming the preferred solution for more and more engineers to meet EMI sealing needs, thanks to their unique advantages of "low closing force, large compression capacity, and high shielding efficiency".

Advanced Institute (Shenzhen) Technology Co., Ltd. will continue to deepen its expertise in the field of conductive elastomer extrusion molding, providing customers with higher performance and more reliable conductive sealing solutions through precision technology and continuous innovation.
