Hollow D-type conductive rubber strip | When the D-type cross-section meets the hollow structure - a perfect balance between low closing force and high shielding effectiveness

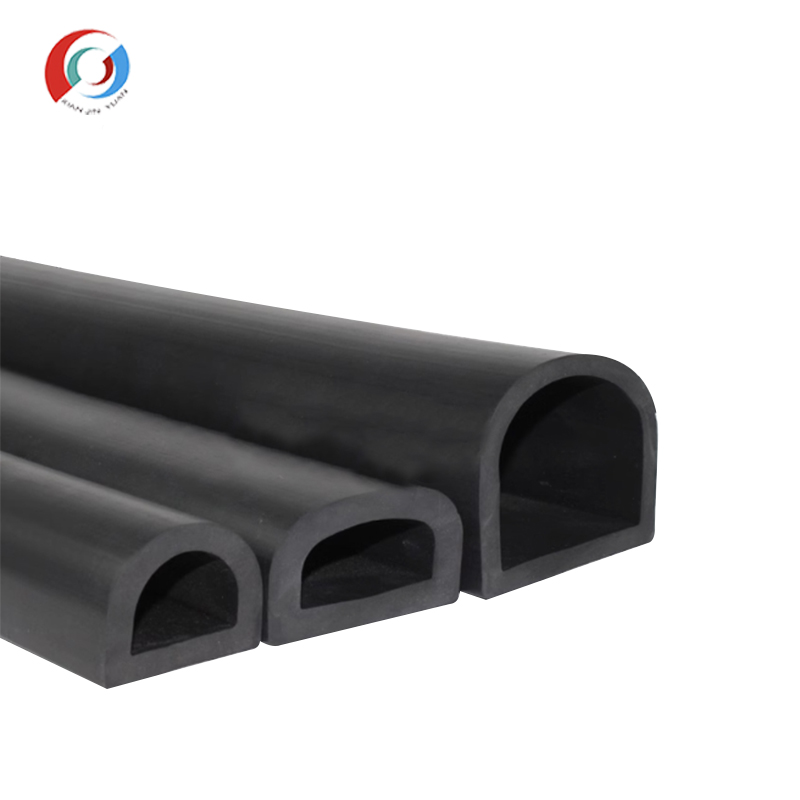

1、 Hollow D-type: When "flat fit" meets "lightweight design"

The cross-sectional design of the conductive rubber sealing strip directly determines its performance in the installation groove. The hollow D-shaped strip is precisely positioned at the intersection of "efficient bonding and low closing force at the flat seam".

The value of D-shaped cross-section lies in its adhesive stability. The flat bottom surface of the D-type can form a larger effective contact area with the installation plane. In scenarios where flat sealing is required for cabinet door frames, panel interfaces, etc., the D-type design makes the conductive rubber strip less likely to roll or shift after compression, and maintains stable position during long-term use. The same sealing strip plays both EMI shielding and environmental sealing roles simultaneously.

The value of hollow structures is more diverse. The internal cavity allows the rubber strip to absorb stress through deformation rather than volume transfer when under pressure. The recommended compression ratio for solid elastomers is 5% -10%, while the recommended compression ratio for hollow extruded parts can reach 10% -50%. A larger compression amount means greater tolerance for changes in installation groove tolerances. More importantly, the hollow structure brings lower closing force - for scenarios such as cabinet doors and maintenance covers that require frequent opening and closing, low closing force means more convenient operation and lighter locking mechanisms.

2、 Data Speaking: The "Hard Index" of Hollow D-type Conductive Rubber Strips

The performance of hollow D-type conductive rubber strips ultimately needs to be answered with data.

Shielding effectiveness is the core indicator. Hollow D-type conductive rubber strips exhibit extremely stable performance over a wide frequency range. Taking the hollow D-type product filled with silver plated aluminum as an example, the noise shielding level at 2GHz frequency can reach 95-120dB. 120dB means that 99.99999999% of electromagnetic waves are effectively blocked - enough to meet the strict EMC standards of military electronic equipment. It is common for the shielding effectiveness to reach 60dB to 120dB in the wide frequency range of 100MHz to 10GHz.

Compressive performance is the core advantage of hollow structures. The recommended compression ratio for hollow extruded parts is 10% -50%. This data means that in extreme cases, it can almost be 'flattened' in half without being damaged. Elastic pads have excellent resistance to compression permanent deformation.

The working temperature range determines the environment in which the material can work. The hollow D-shaped strip of silicone rubber substrate can be used for a long time in a wide temperature range of -55 ℃ to 170 ℃. By selecting a fluorosilicone rubber matrix, it can better withstand the erosion of fuel and solvents, and the maximum working temperature can reach 200 ℃.

In terms of conductivity, different fillers correspond to different volume resistivity. Parker Chomerics' hollow D-type products offer over ten filler options, ranging from silver plated aluminum and silver plated copper to nickel plated graphite and pure silver. Advanced Institute Technology can flexibly choose according to customers' requirements for shielding effectiveness, environmental tolerance, and cost budget.

3、 Packing system determines performance boundary: from commercial grade to military grade

The selection of conductive filler for hollow D-type conductive rubber strips directly determines the performance level and application scenarios of the product.

The silver plated copper system provides the highest level of shielding effectiveness (up to) 120dB@2GHz ）Suitable for high demand scenarios such as military electronics, aerospace, EMP protection, etc. The silver plated aluminum system has excellent galvanic compatibility in aluminum chassis scenarios, with a shielding efficiency of 95-120dB at 2GHz frequency points. The nickel plated graphite system has outstanding cost-effectiveness and is suitable for cost sensitive scenarios such as commercial communication equipment and industrial chassis. Silver plated glass and pure silver systems respectively cover different ranges between performance and cost. The base material can also be flexibly selected - silicone rubber, fluorosilicone rubber or EPDM, corresponding to different temperature and medium resistance requirements.

Advanced Institute Technology can flexibly choose the combination of conductive filler system and matrix material according to customers' requirements for shielding effectiveness, environmental tolerance, and cost budget.

4、 Three major application battlefields: from 5G base stations to military electronics

5G communication and data centers are one of the areas with the highest demand for hollow D-type conductive rubber strips. In 5G base stations, communication cabinets, and RF modules, the operating temperature of the equipment may cycle between -40 ℃ and 85 ℃. The hollow D-type conductive rubber strip can be directly installed in the sealing groove, while completing EMI shielding and environmental sealing. Its wide temperature range stability and low closing force characteristics make it an irreplaceable advantage in cabinet door scenarios that require frequent opening and closing. Conductive rubber sealing strips have been widely used in 5G communication base stations, switches, router chassis, industrial control equipment cabinets, and other scenarios.

The military and aerospace industries represent the application fields with the highest reliability requirements for hollow D-type conductive rubber strips. Conductive rubber products have been proven to be widely used in military electronic equipment such as aviation, aerospace, and ships through practice. The hollow D-shaped strip can meet the strict requirements of the US military standard MIL-DTL-83528. In military electronic chassis, radar systems, and ship electronic equipment, hollow D-shaped strips perform dual tasks of environmental sealing and electromagnetic shielding in planar sealing scenarios.

Automotive electronics and industrial control are the fastest-growing application directions for hollow D-type conductive rubber strips. Vehicle electronic control units, sensors, medical diagnostic equipment, industrial control chassis, etc. have dual requirements for electromagnetic compatibility and sealing protection. The battery management system and high-voltage wiring harness of new energy vehicles have become important driving forces for the growth of demand for conductive rubber sealing strips. The low closing force characteristic of the hollow structure makes it particularly suitable for installing pressure sensitive in vehicle electronic devices.

5、 Selection points: How to choose the right hollow D-type conductive rubber strip for your equipment?

When engineers select hollow D-type conductive rubber strips, it is recommended to start from the following dimensions:

The packing system is the first choice. It is recommended to choose silver plated copper or silver plated aluminum systems for military and high-end communication scenarios; Commercial equipment and general industrial scenarios can choose nickel plated graphite or silver plated glass systems.

The cross-sectional size determines the installation adaptability. Hollow D-shaped strips support customization of various width and height combinations. The matching cross-sectional size should be selected based on the actual size of the installation slot.

The compression amount is related to the balance between shielding and sealing. The recommended compression ratio for hollow extruded parts is 10% -50%. It is recommended to comprehensively determine the actual compression amount based on the door frame closing force, installation groove depth, and sealing grade requirements.

Environmental tolerance determines long-term lifespan. Need to evaluate the working temperature range (-55 ℃ to 200 ℃ optional), chemical medium contact conditions, and flame retardant level requirements (UL94 V-0 optional).

Advanced Institute Technology provides full process technical support from material selection, sample trial production to batch delivery.

The global market for conductive rubber gaskets is expected to reach $706 million by 2032. The global EMI shielding gasket market is estimated to be worth $332 million in 2024 and is expected to reach $727 million by 2031. Driven by the deployment of 5G/6G communication, military electronic upgrades, and the deep evolution of automotive electrification and intelligence, hollow D-type conductive rubber strips are becoming the preferred solution for more and more engineers to meet the needs of planar EMI sealing due to their unique advantages of "low closing force, large compression capacity, and high shielding efficiency".

Advanced Institute (Shenzhen) Technology Co., Ltd. will continue to deepen its expertise in the field of conductive elastomer extrusion molding, providing customers with higher performance and more reliable conductive sealing solutions through precision technology and continuous innovation.
