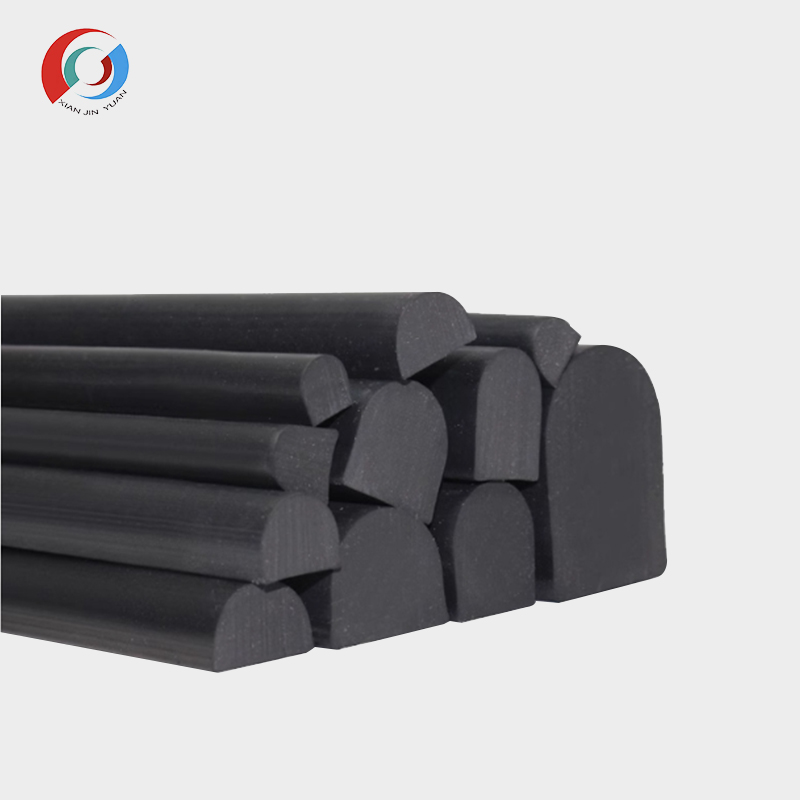

D-type solid conductive rubber strip | When D-type cross-section meets solid structure - the "golden combination" of planar sealing and high shielding effectiveness

1、 D-type solid: When "flat fit" becomes the core demand of sealing design

The cross-sectional design of the conductive rubber sealing strip directly determines its performance in the installation groove. O-shaped strips are suitable for hole sealing, rectangular strips are suitable for large-area flat sealing, and D-type solid strips are precisely positioned for efficient fitting at the "flat seam".

The value of D-shaped cross-section lies in its adhesive stability. The flat bottom surface of the D-type can form a larger effective contact area with the installation plane. In scenarios where flat sealing is required for cabinet door frames, panel interfaces, etc., the D-type design makes the conductive rubber strip less likely to roll or shift after compression, and maintains stable position during long-term use. If there is shear force, a conductive rubber strip with a cross-section of D, P, or C should be selected.

The value of solid structures lies in pressure transmission and durability. Solid D-shaped bars generate uniform sealing pressure through material deformation during compression, with a recommended compression range of 12% -30%. In scenarios such as cabinet doors and maintenance covers that require stable closing force and repeated opening and closing, the pressure distribution uniformity and long-term reliability advantages of solid structures are particularly prominent. The shielding efficiency of conductive rubber can reach 90dB-120dB in the range of 20MHz-20GHz.

2、 Packing system determines performance boundary: from commercial grade to military grade

The D-type solid conductive rubber strip evenly distributes conductive particles in silicone rubber, and contacts the conductive particles through pressure to achieve good conductivity. The selection of conductive fillers directly determines the conductivity, shielding effectiveness, and environmental tolerance of the product.

The silver plated copper system provides the highest level of shielding effectiveness. Solid D-shaped copper silver filled products can achieve a noise shielding level of 120dB at a frequency of 2GHz. Copper silver plated conductive rubber has excellent conductivity and is suitable for military use and high-level EMI shielding scenarios.

The silver plated aluminum system has excellent galvanic compatibility in aluminum chassis scenarios. Solid D-shaped aluminum silver filled products can achieve a noise shielding level of 105dB at a frequency of 2GHz. Aluminum silver plated conductive rubber has excellent shielding and smoke resistance properties, making it a military grade filling material suitable for complex climates.

The nickel plated graphite system has outstanding cost-effectiveness. Nickel/graphite filled D-type solid strips ensure good shielding effectiveness while being more cost-effective, making them suitable for cost sensitive scenarios such as commercial communication equipment and industrial chassis.

The glass silver plating system provides a compromise between performance and cost.

Advanced Institute Technology can flexibly select conductive filler systems based on customers' requirements for shielding effectiveness, environmental tolerance, and cost budget, providing a full range of products from commercial grade to military grade.

3、 Three major application battlefields: from 5G base stations to military electronics

5G communication and data centers are one of the areas with the highest demand for D-type solid conductive rubber strips. In 5G base stations, communication cabinets, and RF modules, the gaps between the chassis door frames and panel interfaces are the main channels for electromagnetic leakage. The D-type solid conductive rubber strip can be directly installed in the sealing groove, with a flat bottom surface closely attached to the installation surface, while completing EMI shielding and environmental sealing. In scenarios such as communication base stations that require high waterproof levels and excellent electromagnetic shielding effectiveness, D-type conductive rubber strips play a crucial role. Products formed by continuous extrusion can be designed with specific cross-sections and lengths according to customer needs.

The military and aerospace industries represent the application areas where D-type solid conductive rubber strips have the highest reliability requirements. Highly conductive extruded silicone rubber sealing strips are widely used for electromagnetic interference resistance in military electronic equipment such as aviation, aerospace, and navigation. The D-type solid strip can meet the strict requirements of the US military standard MIL-DTL-83528. This specification establishes a complete technical standard for conductive elastomer shielding gaskets from material composition to performance testing, and the product can be included in the qualified product list of the National Defense Logistics Agency. In military electronic chassis, radar systems, and ship electronic equipment, D-type solid bars perform dual tasks of environmental sealing and electromagnetic shielding in planar sealing scenarios.

Automotive electronics and industrial control are the fastest-growing application directions for D-type solid conductive rubber strips. Vehicle electronic control units, sensors, medical diagnostic equipment, industrial control chassis, etc. have dual requirements for electromagnetic compatibility and sealing protection. Conductive rubber can be widely used in fields such as anti electromagnetic information leakage, anti electromagnetic interference, electromagnetic compatibility, and electromagnetic sealing. The bonding stability of D-shaped cross-section makes it particularly suitable for flat sealing scenarios with shear forces.

4、 Selection points: How to choose the right D-type solid conductive rubber strip for your device?

When engineers select D-type solid conductive rubber strips, it is recommended to start from the following dimensions:

The packing system is the first choice. It is recommended to choose silver plated copper or silver plated aluminum system for military and high-end communication scenarios (shielding effectiveness) 105-120dB@2GHz ）； Commercial equipment and general industrial scenarios can choose nickel plated graphite or glass silver plated systems (with outstanding cost-effectiveness).

The cross-sectional size determines the installation adaptability. D-type solid bars support customization of various width and height combinations. The matching cross-sectional size should be selected based on the actual size of the installation slot. Common specifications for commercially available D-strips include width 1.52mm x height 1.9mm, width 2.24mm x height 2.06mm, etc.

The compression amount is related to the balance between shielding and sealing. The optimal compression rate for solid D-shapes is between 12% and 30%. Overvoltage may cause the conductive path to be squeezed apart and accelerate permanent deformation.

Environmental tolerance determines long-term lifespan. It is necessary to evaluate the working temperature range (silicone rubber substrate -55 ℃ to 160 ℃), chemical medium contact situation, and flame retardant level requirements. The fluorosilicone rubber matrix can withstand corrosion from fuel and solvents.

Advanced Institute Technology provides full process technical support from material selection, sample trial production to batch delivery.

The global sales of conductive rubber gaskets have reached 507 million US dollars in 2025 and are expected to reach 690 million US dollars by 2032. The global EMI shielding gasket market has reached $3.8 billion by 2025 and is expected to grow to $6.2 billion by 2034. Driven by the deployment of 5G/6G communication, military electronic upgrades, and the deep evolution of automotive electrification and intelligence, D-type solid conductive rubber strips are becoming the preferred solution for more and more engineers to meet the needs of planar EMI sealing due to their unique advantages of "stable fit, strong shielding, and long service life".
