Soft magnetic absorbing materials | How to improve the anti-interference ability of electronic devices

Introduction

In the context of highly integrated and high-frequency modern electronic devices, electromagnetic interference (EMI) has become a key challenge affecting the stability and reliability of device performance. This interference not only comes from the crosstalk between internal components of the device, but also from the invasion of complex external electromagnetic environments. To effectively address this issue,Advanced Institute of TechnologySoft magnetic absorbing materials, as an efficient electromagnetic compatibility (EMC) solution, play a crucial role in enhancing the anti-interference ability of equipment due to their unique magnetic loss mechanism.

1、 Source Control - Suppressing Radiation and Leakage from Interference Sources

The high-speed circuits, switching power supplies, clock signal lines, and other components in electronic devices are themselves powerful sources of electromagnetic interference.Soft magnetic absorbing materialFirstly, it is applied to the near-field region of these interference sources. Its mode of action is not simply shielding (reflection), but effectively absorbing the stray magnetic field lines generated by these components through its high magnetic permeability characteristics, converting harmful electromagnetic energy into negligible thermal energy and dissipating it. This is equivalent to adsorption and purification at the "source" of noise generation, significantly reducing the intensity of interference energy radiating outward or conducting along the circuit, providing a cleaner initial electromagnetic environment for the entire circuit system.

2、 Path blocking - absorbing electromagnetic waves in propagation

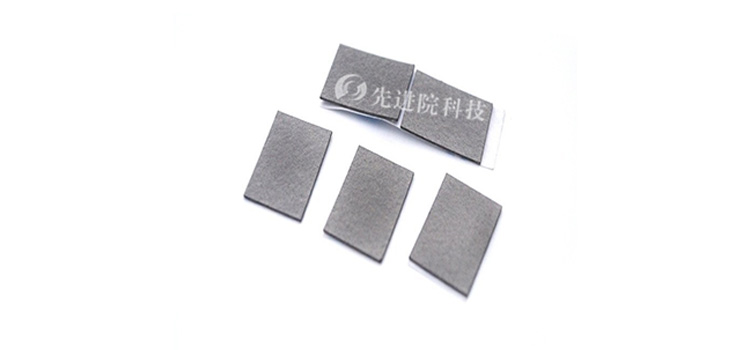

When electromagnetic interference has been generated and begins to propagate in the internal space or wires of the equipment, advanced technologyMagnetic wave absorbing plateFormed the second line of defense. It can be made into thin film, sheet or paste, and attached to the inner wall of equipment casing, cable surface or key areas of circuit board. When electromagnetic waves in propagation encounter the material, they will penetrate deep into the material, and through mechanisms such as hysteresis loss, eddy current loss, and natural resonance, the energy of the waves will be greatly attenuated and converted into thermal energy. This absorption based mechanism, compared to the traditional metal shielding "reflection" mechanism, can more effectively prevent electromagnetic waves from reflecting multiple times in the cavity to form resonance, thereby avoiding the intensification of interference and secondary pollution, fundamentally cutting off the propagation path of interference.

3、 End protection - enhancing the immunity of critical components

The sensitive chips, sensors, receiving antennas, and other key components of the equipment are highly susceptible to external electromagnetic interference, leading to signal distortion, performance degradation, and even functional failure. Directly attaching or molding soft magnetic absorbing materials onto or around these sensitive components can form a localized 'silent zone'. This material can act like an "electromagnetic sponge", preferentially absorbing and consuming the interference energy attempting to invade these components, greatly enhancing the anti-interference immunity of the components themselves, ensuring the processing accuracy and transmission integrity of core signals.

Summary

In summary, Advanced Institute (Shenzhen) Technology Co., LtdFlexible soft magnetic wave plateThrough the triple mechanism of source adsorption, path absorption, and end protection, the anti-interference ability of electronic devices has been systematically improved. It has shifted from the traditional passive shielding concept to active absorption and treatment, efficiently solving the problem of secondary pollution caused by electromagnetic interference reflection. It provides an indispensable core material support for building modern electronic devices with high reliability and stability, and is one of the key technologies for achieving excellent electromagnetic compatibility design.
