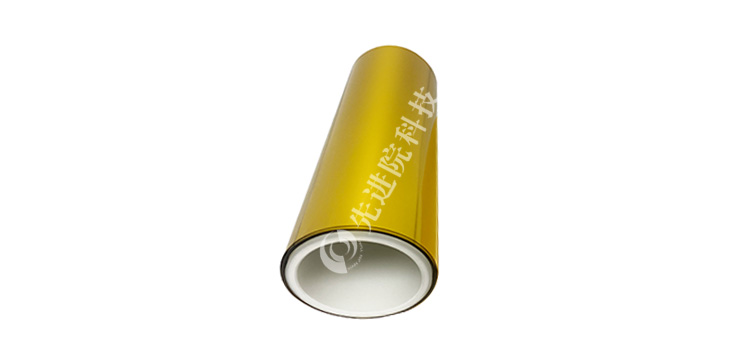

PP Gold Plated Film | A Material Innovator for Cross disciplinary Applications

In the fields of high-end manufacturing and precision electronics, material innovation has always been the core driving force behind technological breakthroughs. When traditional plastic materials and precious metal coatings achieve technological integration, a composite material that combines functionality and aesthetic value emerges——PP gold-plated filmThe PP gold plating film independently developed by Advanced Institute Technology not only breaks through the performance limit of a single material by depositing a high-purity gold layer on the surface of polypropylene (PP) substrate, but also opens up new application scenarios in aerospace, biomedicine, consumer electronics and other fields. This article will deeply analyze the industrial value of this innovative material from four dimensions: technical principles, performance advantages, application scenarios, and customized services.

1、 Technological Breakthrough: Precise Control of Metal Plastic Composite

The core technology of PP gold-plated film lies in achieving molecular level bonding between metal and plastic. Advanced Institute Technology adopts a composite process of vacuum evaporation and chemical plating to form a uniformly thick gold layer on the surface of PP substrate (thickness range of 0.01-5 μ m, tolerance controlled within ± 0.005 μ m). This process requires overcoming three major technical challenges:

1. Interface binding force control: Through plasma pretreatment technology, a nanoscale concave convex structure is formed on the surface of PP, which enables mechanical interlocking between gold atoms and polymer chains. The test data from a research institute in Nanjing shows that the peel strength of the gold-plated film prepared by it reaches 12N/cm, far exceeding the industry standard (≥ 5N/cm).

2. Purity assurance system: Using 99.99% pure gold target material, combined with a closed-loop vacuum system, the impurity content is controlled below 0.001%. Compared with traditional electroplating processes, advanced technology has reduced the resistivity of the coating to 2.2 × 10 Ω· m (20 ℃), which is close to the theoretical value of pure gold.

3. Stress balance design: By using a gradient coating structure (with a nickel transition layer as the bottom layer and a thickness of 0.05 μ m), the stress cracking problem caused by the difference in thermal expansion coefficients between metals and plastics can be effectively alleviated. After cyclic testing from -40 ℃ to 120 ℃, the sample integrity rate reached 100%.

2、 Performance Transition: From Basic Materials to Functional Carriers

The performance improvement of PP gold-plated film presents a synergistic effect of "1 1>2". On the basis of retaining the inherent advantages of PP material (density 0.9g/cm ³, tensile strength 30MPa, acid and alkali resistance pH value 2-12), the metal coating endows its three core functions:

1. Electromagnetic shielding effectiveness: In the frequency range of 10kHz-40GHz, the shielding effectiveness of a 3 μ m thick gold plating film reaches 80dB, which can meet the EMC standards for military electronic equipment. A communication company's actual test shows that after using this material, the anti-interference ability of the equipment is improved by 3 orders of magnitude.

2. Optimization of conductivity: The surface resistivity is as low as 0.01 Ω/□, making it an ideal substrate for flexible circuit boards. A wearable device manufacturer's application case shows that using PP gold-plated film instead of traditional copper foil reduces product weight by 40% and has a bending life exceeding 100000 times.

3. Biocompatibility breakthrough: After special treatment on the surface of the gold layer, the cell adhesion rate increased by 60%, demonstrating potential applications in the field of implantable medical devices. The cell culture experiment at a research institute in Nanjing confirmed that the proliferation rate of fibroblasts cultured on the surface of gold-plated film was 2.3 times higher than that of untreated PP.

3、 Scene Revolution: The Leap from Laboratory to Industrialization

Advanced Institute of TechnologyPP gold plating film has formed three major application matrices:

1. Aerospace field: A satellite manufacturer uses a 0.5mm thick gold plating film as the back panel of solar panels, which improves thermal control efficiency by 15% while maintaining the same total weight. According to space environment simulation tests, the material has a mass loss rate of only 0.03% per year under the condition of an atomic oxygen flux of 10 ¹⁶ atoms/cm ².

2. Consumer electronics innovation: A folding screen mobile phone manufacturer has applied gold plating film to the hinge structure, utilizing its self-lubricating properties to extend the opening and closing life beyond 500000 times. Market feedback shows that this design reduces the product repair rate to 0.3%, which is 70% lower than the industry average.

3. Biomedical breakthrough: A neural electrode array developed by a research institute in Nanjing uses a 2 μ m thick gold plating film as the conductive layer, with a signal-to-noise ratio increased to 65dB, which is 40% higher than traditional platinum iridium alloy electrodes. Preclinical trials have shown that the electrode maintains stable conductivity after 6 months of implantation.

4、 Customized Services: From Standard Products to Solutions

Advanced Institute Technology has established a complete customized production system:

1. Dimensional accuracy control: Equipped with German imported slitting equipment, it can achieve precise cutting with a width of 0.1-2000mm and unlimited length extension. The 0.3mm × 5000mm ultra narrow gold plating film customized by a certain microelectronics enterprise has an edge parallelism error controlled within ± 0.02mm.

2. Thickness gradient design: Through multi target co evaporation technology, a thickness gradient of 0.01-5 μ m can be achieved on a single material. A certain optical device manufacturer used this technology to prepare a variable thickness gold plating film, which improved the uniformity of infrared reflectivity to ± 1.5%.

3. Surface functionalization treatment: Provide post-treatment services such as nano embossing and chemical etching. The microstructure gold plating film customized by a certain sensor enterprise has a surface roughness Ra of 0.05 μ m, significantly improving the sensitivity of fluid sensing.

5、 Industrial impact: reshaping the competitive landscape of materials

According to market research institutions, the global high-end functional film market is expected to grow at a CAGR of 8.7% and reach a scale of 32 billion US dollars by 2025. PP gold-plated film, as an innovative branch, is triggering the restructuring of the industrial chain:

1. Cost structure optimization: Compared with traditional gold foil pasting technology, advanced institute technology reduces material costs by 60% and shortens production cycles by 75%. The case of a certain automotive electronics manufacturer shows that after adopting gold plating film, the cost of a single ECU module has been reduced from 120 yuan to 45 yuan.

2. Significant environmental benefits: The chemical plating process achieves a 98% gold recovery rate, saving 40% water and reducing VOCs emissions by 65% compared to the electroplating process. The LCA assessment of a research institute in Nanjing shows that the carbon footprint of gold plating film production per square meter is reduced by 2.3kgCO ₂ eq compared to traditional processes.

When researchers from a research institute in Nanjing advanced the institutePolypropylene gold-plated filmWhen applied to high-precision sensors, they not only obtained a new type of material, but also ushered in an era of interdisciplinary innovation. The perfect fusion of metal and plastic is redefining the boundaries of functional materials - it is not only the "neural network" of electronic devices, but also a biocompatible "artificial tissue" and a "protective armor" in extreme environments. At the forefront of materials science, PP gold-plated film is writing an innovative chapter of this era with its unique performance combination.
