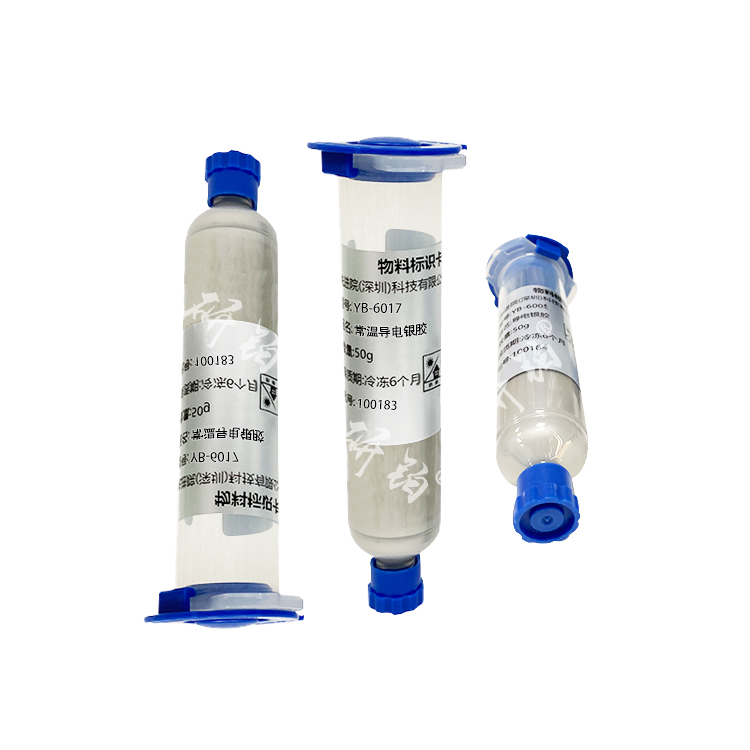

Research Platinum Brand YB6017 Room Temperature Conductive Silver Adhesive | Innovative Material Solution in Electronic Manufacturing Field

In the field of electronic component manufacturing and integrated circuit packaging, conductive adhesive, as a key connecting material, directly determines the reliability and stability of electronic products based on its performance. Traditional conductive adhesives rely heavily on high-temperature curing processes, which not only have high energy consumption and complex processes, but also impose strict requirements on the thermal sensitivity of the substrate. In this context, Advanced Institute Technology independently developedResearch Platinum Brand YB-6017 Room Temperature Conductive Silver AdhesiveWith its breakthrough technology, it has become the focus of industry attention. This product uses silver powder as the core conductive phase and optimizes the resin system and curing mechanism to achieve rapid curing at or near room temperature, providing an efficient and environmentally friendly new solution for electronic manufacturing.

Analysis of Core Components and Conductive Mechanisms

The conductivity of YB-6017, a platinum brand, comes from the precise ratio of its high-purity spherical silver powder. Silver, as one of the metals with the best conductivity, has a theoretical conductivity of 6.3 × 10 ⁷ S/m, far exceeding common conductors such as copper and aluminum. This product uses nano-sized silver powder with uniform particle size distribution (D50 ≈ 1-3 μ m), and reduces the contact resistance between silver particles through surface modification technology, forming a continuous conductive path. The resin matrix adopts a modified epoxy resin system, which provides excellent adhesive strength while achieving cross-linking reaction at room temperature through molecular chain design, avoiding damage to the silver powder structure caused by high temperature. During the curing process, resin molecules form chemical bonds with the surface of silver particles, ensuring the stability of the conductive network and endowing the material with good flexibility and environmental aging resistance.

Technical Advantage: Comprehensive Breakthrough from Laboratory to Production Line

Room temperature curing: reshaping the production process

Traditional conductive adhesive needs to be cured at 80-150 ℃ for 30-60 minutes, while YB-6017 only needs to be left at 25 ℃ for 2-4 hours to achieve the same curing strength. This feature significantly simplifies the production process: in touch screen manufacturing, enterprises can save on oven equipment investment and preheating, cooling and other processes, increasing single line production capacity by about 40%; In the field of integrated circuit packaging, room temperature operation avoids chip warping caused by thermal stress, and the product yield is increased to over 99.2%. A well-known electronics company in Jiangxi has reported that after adopting this material, the energy consumption of its SMT production line has been reduced by 65%, and the equipment footprint has been reduced by 30%.

Performance balance: dual guarantee of conductivity and reliability

Certified by a third-party testing organization,YB-6017 room temperature conductive silver adhesiveThe volume resistivity is as low as 3.5 × 10 ⁻⁴Ω· cm, which is close to the theoretical value of pure silver; The shear strength reaches 18MPa, meeting the requirements of MIL-STD-883K standard. Within a wide temperature range of -40 ℃ to 125 ℃, its resistance change rate is less than ± 5%, demonstrating excellent thermal stability. More noteworthy is that the material, with its unique anti migration design, maintains an insulation resistance of over 10 Ω even after continuous testing for 1000 hours in a high humidity environment of 85 ℃/85% RH, effectively solving the industry problem of electrochemical migration that is prone to occur in traditional silver adhesives.

Application scenario: From micro connectivity to macro systems

Flexible Electronics: The Ideal Choice for Wearable Devices

In the manufacturing of flexible printed circuit boards (FPC), the room temperature curing characteristics of YB-6017 perfectly match its low modulus characteristics (elastic modulus ≈ 1.2GPa). A certain smartwatch manufacturer uses this material to achieve reliable connection between heterogeneous substrates (PI and copper foil). After 50000 bending tests, the contact resistance change rate is less than 2%, significantly better than traditional high-temperature conductive adhesives.

Optoelectronic integration: guarantee of micrometer level accuracy

In the Mini LED backlight module package, YB-6017's rheological properties (thixotropic index ≥ 4.5) support high-precision dispensing process, with a minimum dispensing diameter of up to 0.2mm. Its rapid curing ability (surface drying time<10 minutes) shortens the production line cycle time to 8 seconds per piece, meeting the requirements of large-scale production. Actual test data shows that the backlight module using this material reduces the light efficiency loss by 1.2 percentage points compared to traditional processes, and increases the color gamut coverage to 98% NTSC.

Automotive Electronics: A Reliable Solution for Harsh Environments

YB-6017 has passed AEC-Q200 certification for high vibration and high humidity environments of new energy vehicle BMS systems, and maintains structural integrity during cyclic impact testing from -55 ℃ to 150 ℃. The application case of a certain power battery enterprise shows that the material can withstand more than 100000 mechanical vibrations within a 10-year life cycle, and the fluctuation range of contact resistance is controlled within ± 8%, providing key support for the long-term stability of the battery management system.

Industrial synergy: from technological breakthroughs to ecological construction

Advanced Institute of TechnologyThe deep cooperation with a leading enterprise in Jiangxi marks the successful transition of YB-6017 from laboratory technology to industrial application. The joint laboratory jointly built by both parties focuses on topics such as material modification and process optimization, and has developed a low stress formula (modulus reduced to 0.8 GPa) suitable for ultra-thin chip packaging and a UV assisted curing process suitable for curved surface display. This collaborative innovation model of industry university research application not only accelerates the speed of material iteration, but also promotes the upgrading of the entire electronic manufacturing industry chain towards a green and efficient direction.

Under the development trend of intelligent and miniaturized electronic manufacturing, the YB-6017 room temperature conductive silver adhesive from the Research Platinum brand has redefined the standards for conductive connection materials with its forward-looking technology and wide application. From flexible displays to automotive electronics, from consumer grade products to industrial grade equipment, this innovative material is continuously empowering China's high-end manufacturing and providing more competitive Chinese solutions for the global electronics industry.
