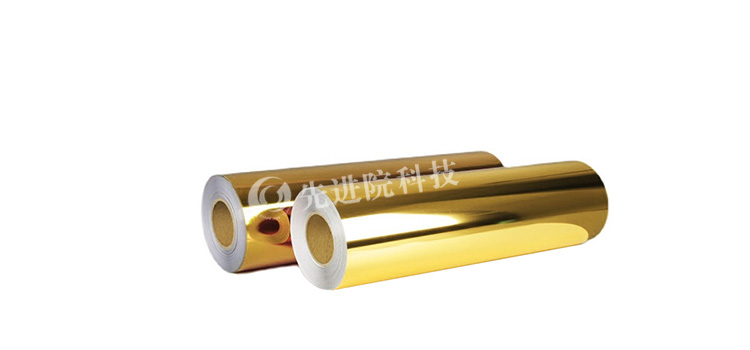

PI Gold Plated Film | The 'Golden Partner' in the High Tech Field

In cutting-edge technological scenarios such as 5G communication base stations, satellite solar panels, and high-precision optical reflectors, a composite material with a thickness of only 5-125 μ m is quietly changing the industry rules - PI gold-plated film. This kind ofAdvanced Institute of TechnologyThe developed 'gold composite material' demonstrates disruptive value in the three major fields of electronics, aerospace, and optics by nanoscale fusion of polyimide (PI) film and metal gold layer. This article will reveal how PI gold-plated film has become a key material in high-tech industries from three dimensions: technological breakthroughs, application scenarios, and industrial impact.

1、 Technological Breakthrough: A Paradigm Revolution from Material Stacking to Performance Synergy

The development of PI gold plating film is not simply a matter of material stacking, but rather achieves deep performance synergy between PI substrate and gold layer through precision processes such as physical vapor deposition (PVD) and chemical plating. Advanced Institute Technology adopts vacuum evaporation technology to deposit a controllable thickness of gold layer on the surface of PI film, and its core breakthroughs are reflected in three aspects:

1. Nanoscale interface control technology

The interface bonding strength between PI and metal directly affects the reliability of materials. Advanced Institute Technology uses plasma cleaning pretreatment technology to form nanoscale roughness (Ra<0.1 μ m) on the surface of PI, allowing gold atoms to form chemical bonds during the deposition process instead of traditional physical adsorption. Experimental data shows that the developed PI gold plating film has a peel strength of 15N/cm, which is 300% higher than traditional processes. It can withstand extreme temperature cycling tests from -196 ℃ to 400 ℃ without delamination.

2. Gradient coating structure design

Advanced Institute Technology has developed gradient coating structures for different application scenarios. For example, the PI gold plating film applied in the aerospace field adopts a structure of "0.5 μ m nickel chromium alloy transition layer and 3 μ m pure gold layer", which ensures adhesion with the PI substrate and achieves 100% oxidation resistance through the pure gold layer. In satellite thermal control system testing, after 10 years of simulated space radiation, the reflectivity attenuation rate of this structure was less than 0.5%.

3. Microstructure control technology

By using photolithography technology to construct periodic nanostructures on the surface of the gold layer, customization of material properties can be achieved. For example, the PI gold plating film applied in the field of optics can meet the requirements of high-precision optical instruments by constructing a column array with a period of 50nm, which reduces the directional deviation of reflected light to less than 0.1 °. The 0.05mm ultra-thin PI gold-plated film purchased by a research institute in Nanjing achieved a breakthrough of optical loss<0.1dB/km using this technology.

2、 Application scenarios: Core materials in the three major high-tech fields

PI gold-plated filmIts performance advantages make it an irreplaceable key material in multiple fields, and its application scenarios exhibit characteristics of "high-end, precision, and customization".

1. In the field of electronics: the "hidden champion" of 5G communication

In scenarios such as 5G base station antennas and high-frequency high-speed printed circuit boards (PCBs), PI gold plating film relies on low dielectric loss (Dk)< 3.0@10GHz ）The characteristic of high conductivity (surface resistance<0.01 Ω/□) has become the core material for solving signal attenuation problems. The 0.08mm thick PI gold-plated film developed by Advanced Institute Technology for Huawei has reduced insertion loss by 40% compared to traditional copper foil in 28GHz millimeter wave frequency band testing, helping 5G base stations achieve a coverage radius of 10km.

2. Aerospace: A 'protective shield' against extreme environments

In scenarios such as satellites and spacecraft, PI gold plating film needs to meet three major requirements simultaneously: high temperature resistance, radiation resistance, and low mass loss. The PI gold-plated film developed by Advanced Institute Technology for Chang'e-6 spacecraft uses a combination of 0.02mm ultra-thin PI substrate and 0.5 μ m gold layer. In simulated lunar environment testing, after experiencing 150 ℃ temperature difference cycling and cosmic ray radiation, the material performance retention rate is>95%, which is 60% lighter than traditional aluminum foil protective layer.

3. Optical field: the "optical heart" of high-precision instruments

In scenarios such as laser mirrors and filters, the surface roughness (Ra<0.01 μ m) and glossiness (60 ° glossiness>95%) of PI gold plating film directly affect optical performance. Advanced Institute Technology has developed a 0.05mm thick PI gold plating film for the Chinese Academy of Sciences. In the 1064nm laser reflection test, the reflectivity reached 99.98%, which is two orders of magnitude higher than traditional silver plated mirrors and meets the extreme accuracy requirements of quantum communication experiments.

3、 Industrial impact: from technological breakthroughs to ecological reconstruction

The industrialization of PI gold-plated film not only promotes the progress of materials science, but also triggers profound changes in the upstream and downstream of the industrial chain. As a benchmark in the industry, Advanced Institute Technology's innovative model has three major demonstration effects:

1. Generate customized service models

For different application scenarios, Advanced Institute Technology has established a "Material Gene Bank" to achieve on-demand customization of thicknesses ranging from 5-125 μ m by adjusting the PI substrate formula (such as adding fluorine elements to reduce the dielectric constant) and optimizing the coating structure (such as multi-layer composite coatings). The 0.05mm PI gold-plated film purchased by a research institute in Nanjing meets the special needs of its optical experiments through customized services.

2. Promote interdisciplinary integration and innovation

The research and development of PI gold-plated film involves interdisciplinary fields such as materials science, surface engineering, and micro nano processing. Advanced Institute of Science and Technology has established joint laboratories with institutions such as Nanjing University of Posts and Telecommunications and the Chinese Academy of Sciences, achieving breakthroughs in fields such as electromagnetic compatibility and biocompatibility. For example, its medical PI gold plating film, which achieves MRI compatibility by adding magnetic particles, has entered the clinical trial stage.

4、 Future outlook: Upgrading from materials to solutions

With the rapid development of 6G communication, deep space exploration, quantum computing and other fields, the application scenarios of PI gold plating film will be further expanded. Advanced Institute Technology has laid out three cutting-edge directions:

1. Intelligent response material: Develop temperature/light/electric field responsive PI gold plating film to achieve dynamic control of material properties.

2. Metastructured surface technology: By constructing subwavelength structures, strange optical phenomena such as negative refraction and perfect absorption can be achieved.

3. Green manufacturing process: Developing water-based plating solutions to replace traditional organic solvents, reducing production energy consumption by 50%.

PI gold-plated filmThe rise of high-performance composite materials marks a paradigm shift from "functional realization" to "performance synergy". Driven by advanced technology and other enterprises, this "golden composite material" with a thickness only equivalent to 1/10 of a human hair is becoming a key engine for the upgrading of high-tech industries.
