Full Analysis of FPC Coating Process: Metalization Technology, Application, and Solutions for Flexible Circuit Boards

1、 The core value and process challenges of FPC coating

The core goal of FPC coating technology is to form a uniform and dense metal coating on the metal lines or connection points of FPC. Its main functions include: protecting the circuit, preventing copper layer oxidation and corrosion, and extending the service life of FPC; Improve conductivity, enhance electrical connection performance, and reduce signal loss; Enhance welding performance and provide reliable surface conditions for component welding; Improve mechanical strength and enhance the bending and peeling resistance of FPC.

However, the flexibility of FPC poses unique challenges to the coating process. The flexibility and thinning of the substrate require the coating to have good ductility to avoid cracking or detachment of the coating during bending. To achieve this, it is necessary to optimize the plating solution formula and process parameters, such as reducing the current density to form a finer crystalline structure, or adding softeners to improve the toughness of the coating. At the same time, for multi-layer FPC or localized electroplating areas, it is necessary to accurately control the position of the coating through mask technology to avoid missed plating or excessive plating.

2、 Common Coating Processes and Functions of FPC

The FPC coating process achieves core goals such as optimizing conductivity, protecting against corrosion, and improving soldering performance by depositing one or more layers of metal coatings on the surface of copper conductors. Common coatings include copper, nickel, gold, silver, tin, etc., each of which serves a different function.

Copper plating (Cu)Used to thicken conductive lines and enhance current carrying capacity. In FPC manufacturing, the chemical copper deposition process involves depositing a thin layer of copper on the hole wall to establish a conductive foundation for subsequent electroplating. Advanced Institute Technology adopts a combined method of chemical copper plating and electroplating copper. Chemical copper plating forms a uniform and dense copper seed layer on the surface of the substrate, while electroplating copper further increases the thickness and conductivity of the copper layer.

Chemical nickel gold plating (ENIG)First, a layer of nickel phosphorus alloy is chemically plated on the copper surface (with a thickness usually controlled at 5-8 microns), and then a thin layer of gold (0.05-0.1 microns) is electroplated. The nickel layer has both corrosion resistance and weldability, while the gold layer prevents nickel oxidation and enhances contact performance. This process has excellent oxidation resistance and corrosion resistance, suitable for high-density wiring and fine solder pads, and is widely used in high reliability fields such as smartphones and medical equipment.

Gold plating (Au)Gold has extremely high chemical stability, excellent conductivity, and low contact resistance. Gold plated FPC is suitable for high-frequency signal transmission or precision connection scenarios. Advanced Institute Technology adopts advanced electroplating technology to uniformly coat micrometer sized gold foil on the surface of high-temperature PI film, strictly controlling the composition of the plating solution, current density, and plating time to ensure the perfect fusion of gold foil and substrate. Learn more:PI gold-plated film.

Silver plating (Ag)Silver is one of the most conductive metals. Silver plated FPC is suitable for high-frequency and microwave circuits, and can meet special requirements for signal transmission efficiency. Against the backdrop of increased requirements for signal transmission speed and stability in 5G communication, the use of coatings with excellent high-frequency characteristics such as silver plating has become more widespread.

Immersion Tin platingChemical deposition of a layer of tin on copper surface has low cost, simple process, good soldering performance and flatness, and is suitable for fields such as consumer electronics and automotive electronics.

3、 Advanced Institute Technology FPC Coating Solution

Advanced Institute (Shenzhen) Technology Co., Ltd. is a national high-tech enterprise focusing on shielding materials, insulation materials, thermal conductive materials, and precious metal coatings. It is dedicated to the research and production of new materials in the flexible circuit board industry. The company has rich R&D and production experience in the field of FPC coating, and has independently built magnetron sputtering and vacuum evaporation production lines. It adopts roll to roll continuous production technology, which can continuously and uniformly deposit metal layers on the surface of flexible polymer films. Suitable substrates include various flexible materials such as PI, PET, LCP, PPS, PEN, FEP, etc.

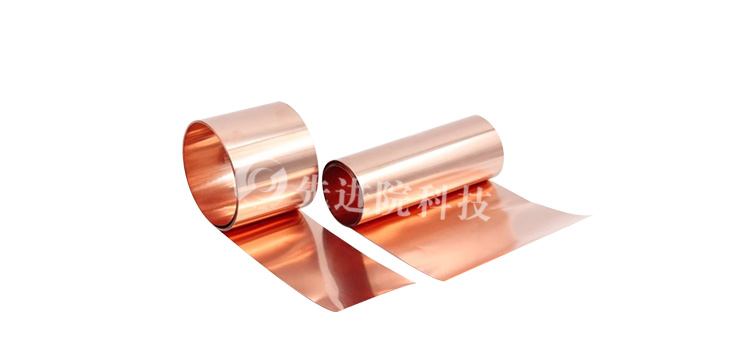

Nickel and copper plating process for PI thin filmAdvanced Institute Technology uses precise chemical deposition technology to uniformly attach nickel and copper metal layers to the surface of PI thin films. The nickel plating layer serves as the bottom layer, effectively blocking the erosion of the PI film by the external environment and enhancing the adhesion with the subsequent copper plating layer; The copper plating layer is an ideal choice for constructing circuit patterns due to its excellent conductivity. The company adopts advanced electrochemical deposition equipment, combined with precision control systems, to monitor and adjust key parameters such as metal ion concentration and current density in the plating solution in real time, ensuring that each PI film can obtain a uniform and consistent coating effect. Learn more:Nickel plating on PI film.

High temperature PI film gold foilAdvanced Institute Technology has developed high-temperature PI film through unique material modification technology, which maintains structural stability and dimensional accuracy under extreme high temperature conditions. On this basis, advanced electroplating technology is used to uniformly coat micrometer sized gold foil on the surface of PI film, which not only enhances the conductivity, but also endows FPC with excellent oxidation and corrosion resistance.

PPS gold plating filmOne of the core products of Advanced Institute Technology, integrating high temperature resistance, electrical insulation, chemical stability, and conductive decoration. The gold layer has extremely high chemical stability, excellent conductivity, and low contact resistance. The company can provide customized PPS gold plating film services with thicknesses ranging from 2 μ m to 125 μ m. The product has a shielding efficiency of over 60dB in the 10GHz frequency band. Learn more:PPS gold plating film.

Environmental Protection and Quality ControlWhile pursuing high performance, Advanced Institute Technology adopts a low toxicity and recyclable plating solution formula, significantly reducing harmful substance emissions and complying with international environmental standards. The company has passed ISO9001 quality management system certification, and its products comply with GJB 773A aerospace related standards and RoHS environmental requirements.

4、 Application scenarios and market prospects of FPC coating

Coated FPC has been widely used in multiple high-end fields.consumer electronicsIn the field, PI copper plated film, as the basic material of FPC, can withstand repeated bending without damage and is suitable for connecting wires in mobile devices such as smartphones and tablets.5G communicationIn the field, with the increasing demand for signal transmission speed and stability in 5G and the Internet of Things, coatings with excellent high-frequency characteristics such as gold plating and silver plating are more widely used.Automotive ElectronicsIn the field, PI copper plated film can work normally in high temperature and harsh environments such as automobile engine compartments, meeting the needs of complex wiring inside automobiles.medical equipmentIn the field, gold-plated FPC has demonstrated unique value in cutting-edge applications such as implantable devices due to its excellent biocompatibility and conductivity.electromagnetic shieldingIn the field, copper plated and gold-plated FPC can effectively prevent external electromagnetic interference and protect the normal operation of internal circuits.

From the market perspective, the global market size of PI film for flexible circuit boards (FPC) is expected to reach approximately $487 million by 2025, and is projected to reach $727 million by 2032. The global electromagnetic interference shielding film market is expected to reach 9.452 billion yuan in sales by 2025 and 15.57 billion yuan by 2032. With the continuous expansion of industries such as 5G/6G communication, new energy vehicles, wearable devices, and brain computer interfaces, the market demand for FPC coating will continue to grow. Advanced Institute Technology is committed to providing customized solutions for global customersFPC Coating SolutionWith roll to roll magnetron sputtering and precision electroplating processes as the core, we aim to help the flexible electronics industry move towards a higher performance, more reliable, and more flexible future.
