Platinum powder is a micro - or nano scale powder material made from high-purity platinum metal through fine processing, which has a wide range of application value in the electronics and ceramic industries. In the field of electronic pastes, platinum powder is dispersed as a conductive functional phase in the glass bonding phase, and a dense conductive layer is formed through screen printing and sintering processes. It is used to manufacture electronic components with strict requirements for conductivity and high temperature resistance, such as high-temperature sensor electrodes, thick film heating elements, and microwave devices. The extremely high melting point and excellent chemical inertness of platinum enable it to maintain stable conductivity even in high-temperature oxidizing atmospheres.
In the field of catalysis, platinum powder is formulated into a catalyst slurry and deposited on the surface of a honeycomb ceramic carrier through a coating process to form an efficient catalytic active layer. Platinum has excellent catalytic conversion ability for carbon monoxide, hydrocarbons, and nitrogen oxides, and is the core active component of automotive exhaust three-way catalysts. Platinum powder with high specific surface area can provide abundant active sites and enhance catalytic efficiency.
The core advantages of this product are excellent conductivity and chemical stability, as well as outstanding resistance to high temperature oxidation; The particle size and morphology can be customized to meet the dispersion and sintering process requirements of different slurry systems; Widely used in high-end electronic component manufacturing and automotive exhaust purification catalysis field.
+86-13826586185
Platinum powder is a fine powder made of pure platinum metal, which has extremely high chemical stability and corrosion resistance. It is an extremely important material in multiple industrial fields. Platinum, as a rare and expensive precious metal, has the following characteristics and applications in powder form:
Product Features:
High purity: Platinum powder is typically made from platinum with a purity of 99.95% to 99.999%, ensuring its excellent physical and chemical properties.
Fine grained distribution: The particle size can range from micrometer to nanometer level, with different particle size distributions according to different application requirements, making platinum powder widely used in fields such as catalysts, electronics industry, and chemical synthesis.
Excellent catalytic performance: Platinum powder, as a catalyst, exhibits outstanding catalytic activity and selectivity in automobile exhaust purification, chemical reactions, and pharmaceutical processes.
Good conductivity: Due to the high conductivity of platinum, platinum powder is often used to manufacture high-performance electrode materials.
High chemical stability: Platinum powder can maintain chemical stability in harsh environments such as high temperature, strong acid, and strong alkali, and will not undergo oxidation.
Non toxicity: Platinum powder is non-toxic to the human body, which makes it potentially advantageous in medical and biotechnology applications.
Product Name: Platinum Powder Product Brand: YB-pt1

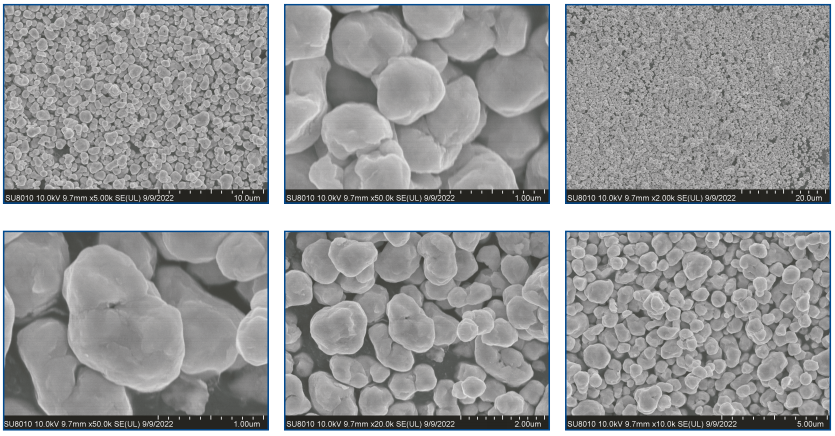

Product Introduction: Spherical or nearly spherical, pure, uniform color
Application recommendation: Mainly used in microelectronic materials as the main raw material for platinum electrode paste
Technical Indicators:
Loose density: 0.7~1.0 g/cm3
Compaction density: 1.0~1.4 g/cm3
Average particle size: 1.0~3.0 μ m (laser diffraction method)
Specific surface area: 3.5~7.0 m2/g
Purity: ≥ Pt99.95% (spectral analysis)
