Ruthenium powder is a powder material made from high-purity ruthenium metal through fine processing, which plays an irreplaceable and important role in the fields of electronic slurries and catalysis. In the field of resistive slurries, ruthenium powder and its oxides are dispersed as conductive functional phases in glass bonding phases, and a dense resistive film layer is formed on the surface of ceramic substrates through screen printing and sintering processes. They are used to manufacture electronic components such as chip resistors, thick film resistor networks, and precision electrical contacts. Ruthenium based resistor paste has the characteristics of wide resistance range, low temperature coefficient of resistance, and excellent long-term stability, making it the core material of high-performance thick film resistor components.
In the field of catalysis, ruthenium powder is formulated into an efficient catalyst slurry and coated on the surface of a carrier to form a catalytic active layer. The high catalytic activity and chemical stability of ruthenium make it play a key role in environmental protection fields such as chemical synthesis catalytic reactions, petroleum refining hydrogenation desulfurization, and exhaust gas purification. Ruthenium exhibits excellent catalytic selectivity for various chemical reactions, significantly improving reaction efficiency and product yield.
The core advantages of this product are: excellent conductivity and catalytic activity, stable physical and chemical properties; The particle size and morphology can be customized to meet the dispersion and sintering process requirements of different slurry systems; Widely used in the manufacturing of electronic components such as chip resistors and electrical contacts, as well as in catalytic fields such as chemical synthesis and petroleum refining, it is an indispensable key precious metal material in high-tech and industrial fields.
+86-13826586185
Ruthenium powder is a metal powder with excellent physical and chemical properties, widely used in various fields. Its high melting point, high hardness, high chemical stability, and high electrical resistivity make it play an important role in catalysts, electronic materials, metal materials, chemical analysis, and medical applications.
chemical properties
Stability: Ruthenium powder has high chemical stability and antioxidant properties, and is not easily reactive with oxygen in the air. At the same time, it also exhibits excellent acid and alkali corrosion resistance and can be used in various chemical environments.
Electrical resistivity and magnetic permeability: Ruthenium powder has high electrical resistivity and magnetic permeability, which make it important for applications in the field of electromagnetic materials.

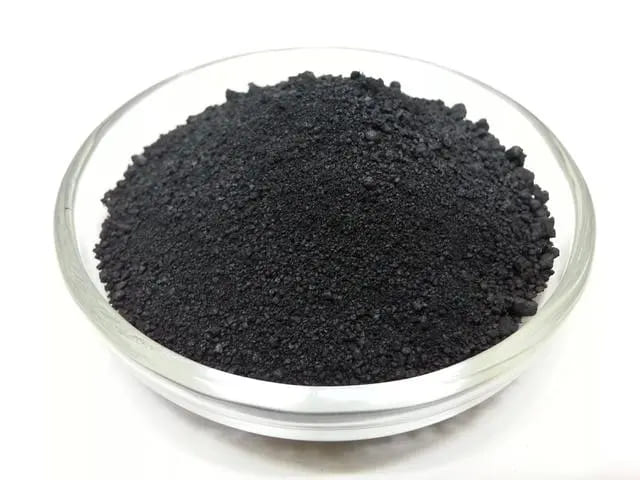

Appearance: Blue black ultrafine powder with uniform color.
performance metrics
Product designation |
YB-RuO2-1 |
YB-RuO2 |
Ruthenium content (%) |
75~76 |
75~76 |
D50(μm) |
3.0～7.0 |
3.0～7.0 |
Specific surface area (m2/g) |
30~70 |
20~30 |
Loose density (g/cm3) |
0.3～0.8 |
0.3～0.8 |
Compaction density (g/cm3) |
0.6～1.1 |
0.6～1.1 |
1. The determination of ruthenium content shall be carried out in accordance with the provisions of YS/T 562;
2. The determination of specific surface area shall be carried out in accordance with Appendix A of GB/T1774-2009, with a blowing temperature set at 150 ℃ and a sample weight of 1-2.5g (determined by the loose packing density);
3. The determination of average particle size shall be carried out in accordance with the provisions of GB/T19077.1;
4. The determination of bulk density shall be carried out in accordance with the provisions of GB/T1479.1;
5. The determination of compacted density shall be carried out in accordance with the provisions of GB/T 5162.
Precautions
1. Safe use: If the product is accidentally swallowed, inhaled, or in contact with the skin, it is harmful. Therefore, it should be thoroughly cleaned immediately after use. Avoid contact with eyes, skin, or clothing, and do not get close to fire or combustibles. As it is flammable, cover it tightly when not in use to avoid inhaling volatile gases. Air circulation should be maintained during use.
2. This product should be stored in a cool and dry place between 5 and 25 ℃, with a shelf life of 12 months.
Partial Batch Test Reports
2021110307 |
2022012513 |
2022032208 |
2022040801 |
2022041901 |
2022090501 |
|
Ruthenium content (%) |
≥75 |
≥75 |
≥75 |
≥75 |
≥75 |
≥75 |
D50(μm) |
4.05 |
4.45 |
4.38 |
3.88 |
4.18 |
4.19 |
Specific surface area (m2/g) |
45.4486 |
23.7847 |
21.3361 |
63.4189 |
36.7411 |
31.8087 |
Loose density (g/cm3) |
0.44 |
0.47 |
0.46 |
0.41 |
0.45 |
0.45 |
Compaction density (g/cm3) |
0.73 |
0.77 |
0.77 |
0.76 |
0.75 |
0.78 |
