Bluetooth NFC absorbing material | Improving the performance of near-field communication modules

Introduction

In modern compact and highly integrated electronic devices, Bluetooth and NFC (Near Field Communication) modules are often placed in very limited spaces. This close coexistence can easily cause electromagnetic interference, leading to shortened communication distances, decreased data rates, and even connection interruptions. Absorbing materials, as a functional material that can effectively absorb and attenuate electromagnetic waves, are becoming one of the key technologies to solve this problem and optimize the performance of near-field communication modules.

1、 The root cause and performance bottleneck of electromagnetic interference

Although Bluetooth and NFC operate in different frequency bands, they both belong to wireless communication technologies. When they coexist on the same device, their electromagnetic signals will interfere with each other. The RF signal of Bluetooth may drown out weak NFC signals, and the magnetic field generated during NFC operation may also interfere with the efficiency of Bluetooth antennas. In addition, the metal components and circuits inside the device reflect these electromagnetic waves, forming complex standing waves and harmonic vibrations, which not only consume energy but also generate noise, ultimately resulting in poor communication stability and shorter effective read and write distances.

2、 The mechanism of action of absorbing materials

wave-absorbing materialThe core function is to convert unwanted electromagnetic wave energy into thermal energy and dissipate it. When applied around Bluetooth and NFC modules, it acts like an 'electromagnetic sponge'. Firstly, it can absorb the stray electromagnetic waves radiated outward by the module, preventing them from reflecting and overlapping inside the device. Secondly, it can establish a "barrier" between two modules, effectively blocking direct electromagnetic coupling between Bluetooth and NFC. In this way, it purifies the electromagnetic environment around the module, allowing the antenna to focus more on transmitting and receiving effective signals within its designed frequency band.

3、 Core improvements brought to performance

After introducing absorbing materials, the performance of near-field communication modules will be significantly improved in various aspects:

1. Enhance communication stability: By suppressing interference, the packet loss rate of Bluetooth connections is reduced, the number of failed NFC transactions is reduced, and the communication process is more reliable.

2. Extend effective communication distance: reduces the energy loss of signals internally, allowing more energy to be used for external communication, thereby increasing the coverage range of Bluetooth and the read-write distance of NFC at the same power.

3. Enhance anti-interference capability: The device performs more robustly in complex electromagnetic environments (such as multiple electronic devices working simultaneously), reducing the risk of external signal interference.

4、 Application scenarios and design considerations

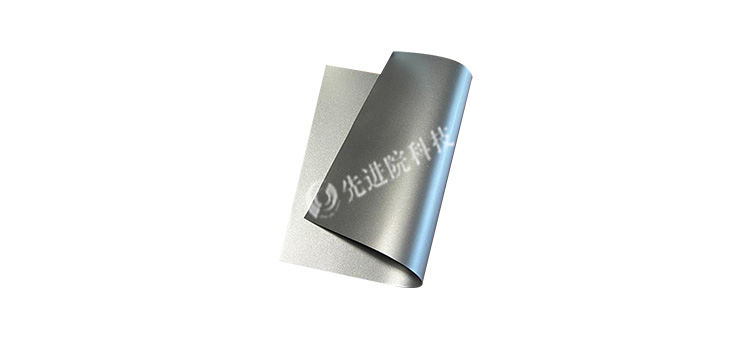

Multi band electromagnetic shielding patchThe application is of great practical value. In products with limited space such as smartphones, wearable devices, POS machines, and smart door locks, it is usually cut into specific shapes and attached to the inside of the module shielding cover, under the antenna, or in key areas between two modules. When selecting and applying, it is important to consider the absorption performance, thickness, flexibility, and long-term reliability of the material in the target frequency band, ensuring that it improves performance without affecting the overall structure and heat dissipation of the device.

Summary

In conclusion,Advanced Institute (Shenzhen) Technology Co., LtdThe Bluetooth NFC absorbing material is not a passive filler, but an active electromagnetic environment management solution. It fundamentally solves the coexistence problem of wireless communication modules in compact devices by accurately absorbing and suppressing harmful electromagnetic interference, thereby significantly improving the stability, distance, and overall reliability of communication. In the pursuit of higher performance and smaller volume in modern electronic product design, the strategic position of absorbing materials is increasingly prominent.
