Analysis of Characteristics and Electromagnetic Shielding Applications of High Magnetic Permeability Absorbing Materials

Introduction

In today's era surrounded by various electronic devices and wireless signals, electromagnetic waves not only bring us convenience, but also generate complex electromagnetic interference (EMI) problems. Effective electromagnetic shielding and absorption technology has become crucial to ensure reliable operation of equipment, information security, and human health. Among numerous materials,Advanced Institute (Shenzhen) Technology Co., LtdThe high magnetic permeability absorbing material, with its unique physical properties, exhibits irreplaceable advantages in dealing with low-frequency magnetic field interference and has become one of the key materials in the field of electromagnetic compatibility (EMC).

1、 Core feature analysis

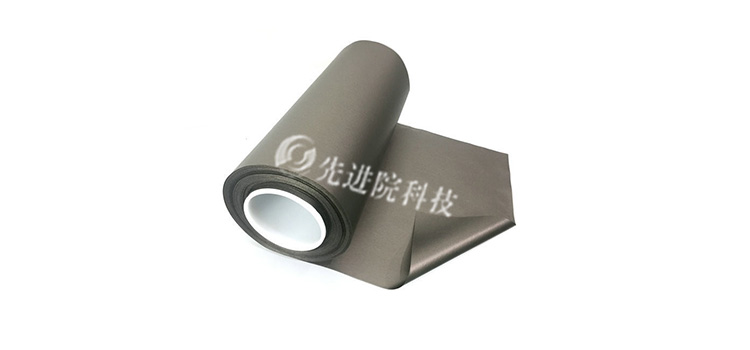

Advanced Institute (Shenzhen) Technology Co., LtdHigh permeability absorbing materialThe most essential feature is its extremely high complex magnetic permeability (μ). Unlike traditional metal shielding materials that mainly rely on reflection, the working principle of such materials focuses more on absorption and magnetic loss.

1. Efficient magnetic energy conversion: There are a large number of magnetic dipoles inside it. When an external alternating magnetic field passes through, these magnetic dipoles will violently flip and vibrate, converting the invading electromagnetic wave energy into thermal energy and dissipating it, thus achieving efficient absorption effect.

2. Excellent performance in low frequency range: The higher the magnetic permeability of the material, the stronger its ability to attract and absorb low frequency magnetic fields (usually in the frequency range below MHz, such as power frequency, read-write head noise, etc.). This makes it effective in solving many low-frequency magnetic field interference problems, which are difficult for many reflective materials to handle.

3. High impedance characteristics: Although mainly due to magnetic loss, its surface also has relatively high wave impedance, which can better match the wave impedance of free space, allowing more electromagnetic waves to enter the material and be consumed instead of directly reflected, reducing secondary pollution.

2、 Analysis of working mechanism

Its working mechanism can be summarized as a trilogy of "attraction absorption dissipation".

Attraction: Its extremely high magnetic permeability enables it to effectively "collect" and "guide" scattered magnetic lines around it, concentrating magnetic interference on the material itself and preventing the magnetic field from spreading to sensitive areas that require protection.

Absorption: Electromagnetic waves entering the interior of materials can cause various magnetic loss mechanisms such as hysteresis loss, domain wall resonance, and natural resonance, and the energy of electromagnetic waves is rapidly absorbed inside the material.

Dissipation: The absorbed electromagnetic energy is ultimately converted into negligible thermal energy through microscopic friction and dissipated into the surrounding environment, thereby completely eliminating electromagnetic interference.

3、 Analysis of Electromagnetic Shielding Applications

Based on the above characteristics and mechanisms,Nanocrystalline absorbing materialsPlays a crucial role in the following scenarios:

1. Anti interference of electronic devices: widely used in consumer electronics such as smartphones, tablets, laptops, etc. For example, sticking it near the camera module, speaker, and microphone can prevent low-frequency magnetic field crosstalk between internal circuits, improve imaging quality, and audio signal-to-noise ratio.

2. Data centers and communication base stations: used to shield magnetic field interference generated by server power supplies, hard disk drives, and base station filters, ensuring the stability and integrity of data storage and transmission.

3. Medical and precision instruments: Used in places with extremely high electromagnetic environment requirements, such as MRI equipment and high-precision measuring instruments, to isolate external magnetic field interference and ensure the accuracy and reliability of equipment measurement results.

4. Near field communication optimization: pasted on the back of the NFC antenna, it can shield the leakage of magnetic field to the rear, concentrate the magnetic flux to the front reading area, and greatly improve the reading and writing distance and sensitivity.

Summary

Advanced Institute of TechnologyLow frequency strong absorbing magnetWith its working mechanism centered on absorption and magnetic loss, it perfectly compensates for the shortcomings of traditional reflective shielding materials in low-frequency magnetic field processing. It eliminates electromagnetic interference quietly and efficiently through the method of "turning enemies into heat", achieving true "purification" rather than "reflection". In the trend of modern electronic devices becoming increasingly miniaturized, integrated, and high-frequency, it has become an indispensable advanced functional material for improving product electromagnetic compatibility, reliability, and performance.
