Highly compressible, soft and elastic, high thermal conductivity silicone film

High thermal conductivity silicone filmCharacteristics and advantages

● Highly compressible, soft and elastic, suitable for low-pressure application environments

● Ultra high thermal conductivity; Electrical Insulation

● Meet the environmental requirements of ROHS and UL

● Natural viscosity

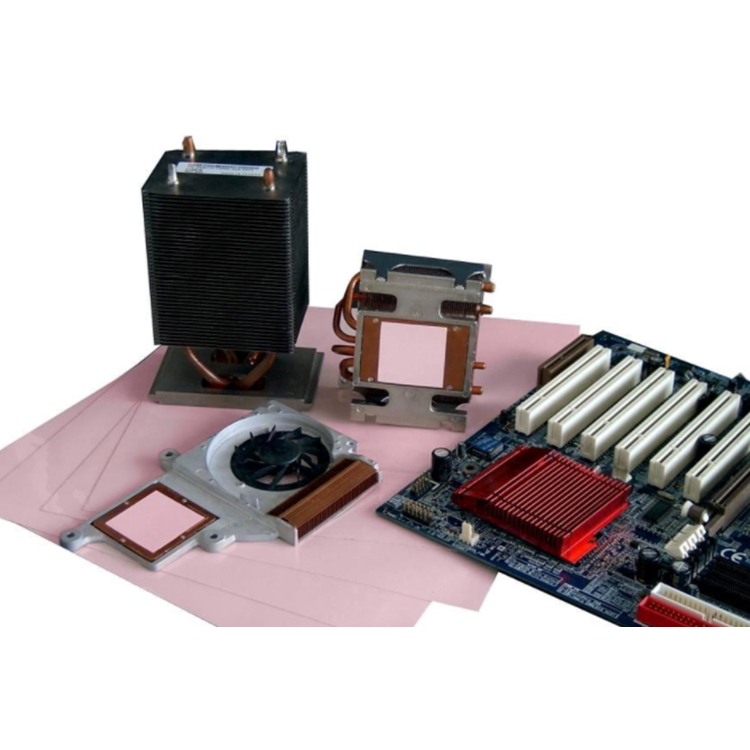

Typical applications

Laptops, drones, and dash cams

● Communication hardware equipment, robots, intelligent devices

● High speed hard drive

Physical characteristic parameter table:

Test project	test method	unit	test value
Color Color	Visual		blue
Thickness	ASTM D374	Mm	0.25~6.0
Specific Gravity	ASTM D792	g/cm3	1.9±0.1
Hardness	ASTM D2240	Shore C	25±5
Tensile Strength	ASTM D412	kg/cm2	55
	ASTM D412	Pa	5.9*109
Continuous use temperature range	EN344	℃	-40~ 220
Volume Resistance	ASTM D257	Ω-cm	2.9*1011
Voltage Endurance Ance	ASTM D149	KV/mm	4.8
Flame Rating	UL-94		V-0
Thermal conductivity	ASTM D5470	w/m-k	6.0

Basic specifications: Width can reach 400mm, length is arbitrary. The thinnest thickness can reach 0.25mm, which can be cut into specific sizes according to usage specifications
