Copper foil gold plating | When the conductivity of copper meets the stability of gold - the "gold armor" of high-end electronic manufacturing

1、 Copper's' Shortboard ', Gold's' Supplement' - Precise Collaboration of Three Layer Structure

Copper foil gold plating is not simply a "copper on top gold" process, but a set of three layers designed with precision: copper substrate nickel transition layer gold functional layer.

Copper substrate is the conductive core of the entire structure. The copper foil of Advanced Institute Technology has a purity of 99.99%, a resistivity as low as 1.7 μ Ω· cm, and can carry a current density of 2A/mm ², meeting the requirements of high-power transmission. The conductivity of pure copper is second only to silver, which is the foundation of the performance of gold-plated copper foil.

The nickel transition layer is an easily overlooked but crucial technical key. Direct contact between copper and gold can form brittle copper gold alloys, leading to welding failure. Advanced Institute uses aminosulfonate plating solution to deposit a 5-8 μ m nickel layer on the copper surface, with a hardness of HV200. The nickel layer can both prevent copper atoms from diffusing into the gold layer and enhance the adhesion of the gold layer. Experimental data shows that after adding a nickel layer, the peel strength of the gold layer increased by 300%, and the salt spray test tolerance time was extended from 200 hours to 1000 hours.

The gold functional layer endows the material with core properties. Advanced Institute uses pulse electroplating technology to deposit a gold layer of 0.05-5 μ m on the surface of the nickel layer, with a thickness accuracy controlled within ± 0.05 μ m. Hard gold (containing cobalt/nickel) typically has a thickness greater than 0.5 μ m and a wear resistance of up to 5000 insertions and removals; Soft gold (purity>99.9%) with a thickness of 0.05-0.15 μ m and a contact resistance as low as 10m Ω, suitable for high-frequency signal transmission.

2、 Data speaks: Four performance advantages for reconstructing material boundaries

The breakthrough of copper foil gold plating technology lies in its ability to simultaneously solve the contradiction between conductivity, corrosion resistance, wear resistance, and processability.

High frequency signal "low loss channel" - In 5G millimeter wave communication, for every 0.1dB reduction in signal loss, the coverage radius can be extended by 10%. The Advanced Institute has optimized the grain structure of the gold layer to control the transmission loss in the 10GHz frequency band at 0.3dB/100mm, which is 40% lower than that of tin plated copper foil. The skin effect characteristic of gold makes its loss extremely low in high-frequency signal transmission.

Anti corrosion warriors in harsh environments - In marine or chemical environments, copper foil is prone to forming insulation layers due to oxidation and vulcanization, leading to contact failure. The advanced institute's gold-plated copper foil has passed a 1000 hour salt spray test, with no corrosion marks on the surface, and its corrosion resistance is 5 times that of tin plated copper foil. A certain marine monitoring equipment manufacturer has reported that after adopting this technology, the equipment failure rate has decreased from an average of 12 times per year to 2 times, and maintenance costs have been reduced by 70%.

Precision manufacturing "zero defect guarantee" - In the field of semiconductor packaging, micro defects such as coating pinholes and cracks can cause device failure. Advanced Institute has controlled the defect rate below 0.02% and achieved a yield rate of 98% through microcurrent precision gold plating technology. Gold plating has strong chemical stability, only soluble in aqua regia, high temperature resistance, and easy welding.

Flexible applications have unlimited possibilities - foldable screen phones, wearable devices, and other flexible electronics require extremely high material ductility. The ultra-thin gold-plated copper foil developed by the Advanced Institute has a resistance change rate of less than 5% after 100000 folds under a bending radius of 1mm. Gold has better flexibility than copper, making gold-plated copper foil perform better in repeated bending tests.

3、 Three thicknesses, three scenarios - precise matching from 12 μ m to 33 μ m

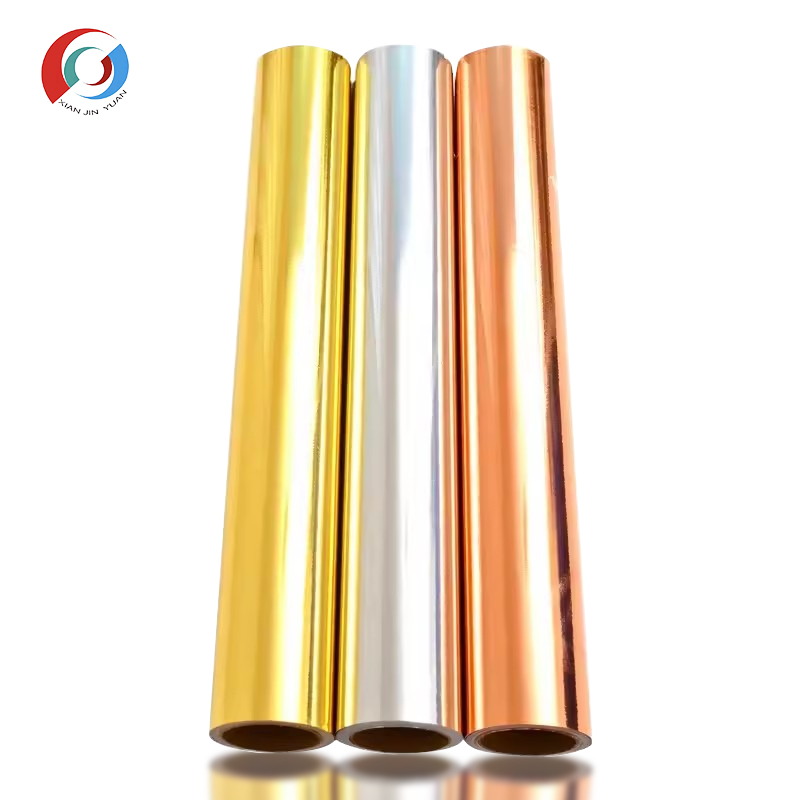

Advanced Institute Technology provides copper foil gold-plated products with three standard thicknesses of 33 μ m, 18 μ m, and 12 μ m.

12 μ m - Ultra slim and lightweight. With a thickness of only 0.012mm, it is suitable for micro electronic devices, flexible circuit boards, and wearable devices that have extreme requirements for space and weight. After a certain flexible circuit board manufacturer adopted this technology, the product achieved stable signal transmission in ultra-thin space.

18 μ m - Balanced universal type. Balancing flexibility and mechanical strength, suitable for mainstream electronic manufacturing scenarios such as mobile phone antenna modules, precision connectors, and electromagnetic shielding components. Huawei and other leading companies have strict requirements for copper foil gold plating in their 5G signal reception.

33 μ m - structurally enhanced type. Suitable for scenarios that require higher mechanical strength and durability, such as PCB manufacturing, semiconductor packaging, and industrial equipment. 33 μ m copper foil gold-plated products have been widely used in high-end precision industries such as aerospace, communication, and medical equipment.

4、 From 5G base stations to pacemakers - the three major battlefields of copper foil gold plating

5G/6G communication and high-frequency RF are the fastest-growing application areas for copper foil gold plating. 5G millimeter wave signals have high frequency and shallow skin depth, making them extremely sensitive to the surface quality of conductors. Gold plated copper foil has a transmission loss of only 0.3dB/100mm in the 10GHz frequency band and is widely used in 5G base stations, millimeter wave antennas, and RF front-end modules. The market size of copper foil for high-frequency substrates is expected to reach approximately 119.99 billion yuan in 2025 and 192.66 billion yuan in 2032.

Medical electronics and precision instruments represent the highest dimension of reliability requirements. In implantable medical devices such as pacemaker electrodes and nerve stimulators, materials need to simultaneously meet conductivity, biocompatibility, and long-term stability. Gold plating has excellent corrosion resistance and biocompatibility. Advanced Institute Technology's copper foil gold plating has been widely used in medical electronic devices.

Flexible electronics and consumer electronics are the fields with the highest usage of copper foil gold plating. Folding screen smartphones, wearable devices, and flexible circuit boards have high requirements for the ductility and bending life of materials. After adopting advanced ultra-thin gold-plated copper foil, the resistance change rate of the flexible circuit board is less than 5% after 100000 folds. The global copper foil market has reached a scale of 6.8 billion US dollars by 2025 and is expected to grow to 11.4 billion US dollars by 2034. Electromagnetic shielding and flexible electronics are the main driving forces for the commercial application of gold-plated copper foil.

5、 Customization: From thickness to performance, match as needed

Advanced Institute Technology is well aware that there are differences in the requirements of different customers for copper foil gold plating, and provides customized thickness and size services according to their needs. Whether it is ultra-thin gold-plated copper foil, it is used for microelectronic devices that require extremely high space and weight requirements; It is still a thicker gold-plated copper foil that meets the strength and durability requirements in special environments - advanced technology can accurately control it. The thickness of the gold layer can be controlled within the range of 0.05 μ m to 5 μ m. The company has passed ISO9001 certification and its products comply with RoHS environmental requirements.

The global gold-plated copper foil market is expected to continue expanding at a compound annual growth rate of 7.3%, with a market size of $335 million by 2032. The global metal foil market is estimated to be worth approximately 2.3 billion US dollars by 2025, with a compound annual growth rate of 4.3%. Driven by the deployment of 5G/6G communication, upgrading of medical electronics, popularization of flexible electronics, and high-frequency consumption of consumer electronics, copper foil gold plating is moving from a "high-end professional material" to a standard functional substrate for multi field electronic manufacturing.

Advanced Institute (Shenzhen) Technology Co., Ltd. will continue to deeply cultivate the field of copper foil gold plating, providing customers with higher performance and more reliable metal coating solutions through precision coating technology and continuous technological innovation.
