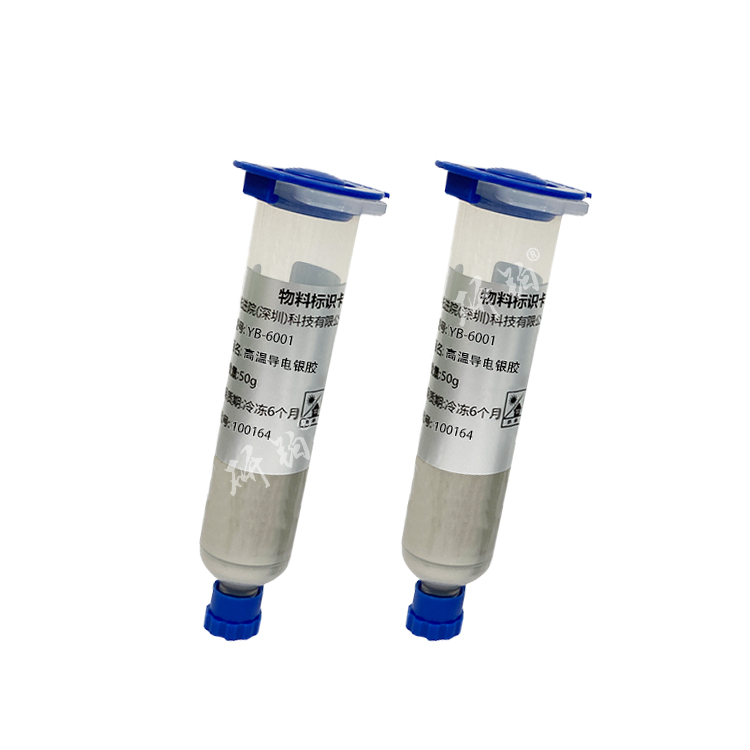

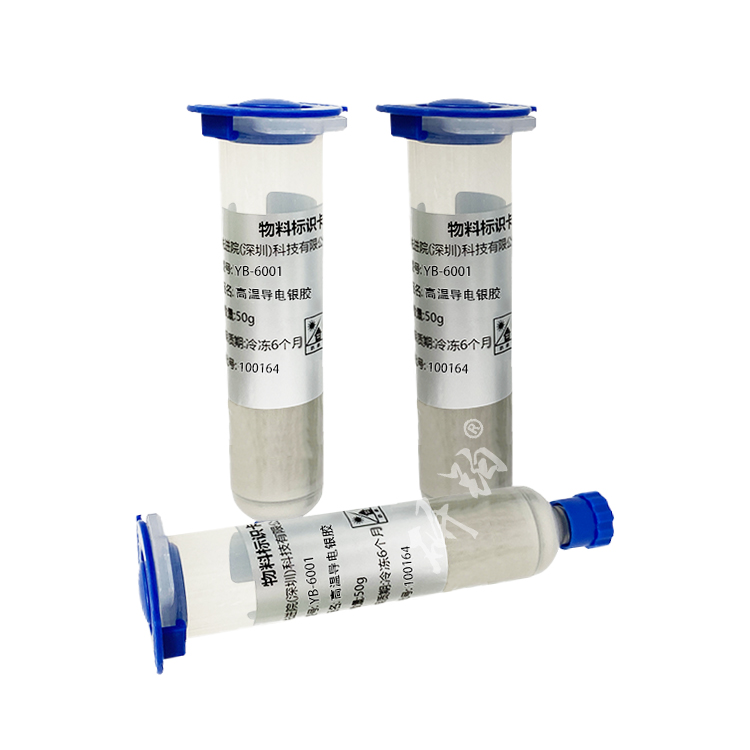

Research Platinum YB-6001 High Temperature Conductive Silver Adhesive | The "Hidden Champion" of the Electronic Industry

In precision industries such as electronics, semiconductors, and mechanical manufacturing, the performance of conductive connection materials directly determines the reliability and lifespan of products. The traditional soldering process has gradually exposed its limitations due to high-temperature damage and complex processes, while conductive silver paste has rapidly emerged with its advantages of low-temperature curing and flexible connections. Among numerous products, Advanced Institute Technology's research and developmentResearch Platinum YB-6001 High Temperature Conductive Silver AdhesiveWith core parameters such as "temperature resistance of 260 ° C, resistivity of 0.001 Ω· cm, and 2000 cycles of cold and hot without failure", it has become a benchmark in the industry. This article will analyze how this material reshapes the connectivity standards of the electronics industry from three dimensions: technological breakthroughs, application scenarios, and cost-effectiveness.

1、 Technological Breakthrough: The Leap from "Usability" to "Extreme Reliability"

1.1 Collaborative innovation of nanoscale silver powder and resin system

The core competitiveness of YB-6001 lies in its unique material formula. This product uses a 1:1 weight ratio of flake silver powder and granular silver powder. The minimum size of flake silver powder is 15 microns, and the diameter of granular silver powder is controlled at 10-15 microns. This structural design enables silver powder to form a dual conductive network of "surface contact point filling" in the resin matrix: flake silver powder reduces contact resistance through surface contact, and granular silver powder fills gaps to enhance mechanical bonding. Experimental data shows that its volume resistivity is as low as 0.001 Ω· cm, which is only 60% lower than the conductivity of pure silver, while the resistivity of traditional conductive silver paste is usually in the range of 10 Ω· cm.

In terms of resin matrix, YB-6001 uses a composite system of modified epoxy resin and nano silica moisture-proof agent. Epoxy resin provides excellent adhesive strength (shear strength up to 120N/cm ²), while nano silica increases the thermal failure temperature of the material from the conventional 150 ° C to over 200 ° C. In the field testing of power devices in a certain 5G base station, YB-6001 devices were used to operate continuously for 2 years in a 55 ° C/95% humidity environment without conductivity degradation or interface delamination, and the failure rate was reduced by 80% compared to traditional products.

1.2 Low temperature curing and process compatibility

The curing temperature of YB-6001 is 130-150 ° C, and the curing time is only 30-60 minutes, which is much lower than the sintering temperature of 850 ° C for high-temperature sintered silver paste. This feature makes it compatible with various substrates such as plastics, ceramics, glass, etc., especially suitable for flexible electronic devices that are sensitive to heat. For example, in the manufacturing of Mini/Micro LED display modules, YB-6001 can achieve low-temperature rapid bonding between chips and substrates, avoiding pad oxidation or substrate deformation caused by high temperatures, and increasing yield by more than 15%.

In addition, the viscosity of the material is set to 100 Pa · s, which ensures the fluidity of the dispensing process and avoids uneven distribution caused by flow. Combined with automatic dispensing equipment, the work efficiency of a single production line can be increased by 30%, and energy consumption can be reduced by 20%.

2、 Application scenarios: Full coverage from consumer electronics to extreme environments

2.1 Consumer Electronics: Balance between Lightness and High Reliability

In the fields of consumer electronics such as smartphones and wearable devices, YB-6001 solves two major pain points of traditional soldering processes: firstly, it cannot meet the bending requirements of flexible circuit boards, and secondly, high-temperature soldering can easily damage precision components. Taking a certain brand of foldable screen mobile phone as an example, the conductive connection at the hinge part needs to withstand hundreds of thousands of folds. YB-6001 ensures long-term stability through its flexibility (elongation at break>15%) and fatigue resistance.

YB-6001 is used for bonding batteries and circuit boards in the manufacturing of TWS earphone charging cases. Its temperature resistance can cover extreme environments ranging from -40 ° C to 260 ° C, avoiding connection failure caused by temperature fluctuations during charging. According to calculations, after using this material, the product repair rate has decreased from 3% to 0.5%, saving over one million yuan in annual costs.

2.2 Industrial Electronics: Guardians of High Temperature and High Humidity Environments

In industrial control, automotive electronics and other scenarios, equipment needs to operate in high temperature, high humidity or corrosive environments for a long time. The temperature resistance (continuous operation at 260 ° C) and weather resistance (tested by ASTM D257 salt spray) of YB-6001 make it an ideal choice. For example, in the battery management system (BMS) of a certain new energy vehicle enterprise, YB-6001 is used to connect the sampling chip with the printed circuit board (PCB). In the temperature shock test from -40 ° C to 85 ° C, the material maintained stable conductivity after 2000 cycles, while traditional conductive silver paste showed a resistance jump after 500 cycles.

In the field of photovoltaic inverters, YB-6001 is used for bonding power devices and heat sinks. Its thermal conductivity reaches 20W/m · K (traditional conductive silver paste usually<5W/m · K), which can effectively conduct the heat of the device to the cooling system, reducing the operating temperature of the inverter by 10 ° C and extending its lifespan by 30%.

2.3 Aerospace: The 'Last Line of Defense' under Extreme Conditions

In the aerospace field, the reliability of electronic equipment is directly related to the success or failure of missions. YB-6001 has passed IPC TM-650 standard testing and meets military grade requirements. A certain satellite manufacturing enterprise uses this material to connect solar panels with power management modules. After operating in a vacuum and high radiation environment for 5 years, there has been no decrease in conductivity. Its temperature resistance range covers -55 ° C to 260 ° C, which can withstand severe temperature fluctuations during the launch phase.

3、 Cost effectiveness: From single point cost reduction to system optimization

3.1 Direct Cost: Savings from Material Performance Improvement

The high conductivity (resistivity 0.001 Ω· cm) of YB-6001 means that the required material usage can be reduced by 30% under the same current transmission requirements. Taking a certain LED lighting enterprise as an example, after switching to YB-6001, the amount of conductive silver adhesive used for a single lamp bead decreased from 0.02g to 0.014g, saving more than 500000 yuan in material costs annually.

In addition, the aging resistance of the material (tested through 1000 hours of accelerated aging in an 85 ° C/85% RH environment) significantly extends the product life and reduces after-sales maintenance costs. According to statistics, customers who use YB-6001 have an average repair rate reduced by 60%, resulting in annual cost savings of millions of yuan.

3.2 Indirect Costs: Process Simplification and Efficiency Improvement

The medium low temperature curing characteristics of YB-6001 eliminate the preheating, welding, cooling and other steps in traditional soldering processes, reducing the manufacturing time of single products from 5 minutes to 2 minutes and increasing production line efficiency by 60%. After switching to this material in a smartwatch manufacturing factory, the daily production capacity increased from 10000 pieces to 16000 pieces, and the scrap rate caused by high temperature damage decreased from 2% to 0.3%.

In addition, the low-temperature process is compatible with more substrates, reducing rework caused by substrate deformation. For example, in the case of a medical equipment manufacturer, after adopting YB-6001, the scrap rate of PCB boards decreased from 1.5% to 0.2%, saving more than 300000 yuan in annual costs.

4、 Future outlook: Upgrading from materials to solutions

Advanced Institute of TechnologyNot limited to the existing performance of YB-6001. According to its research and development team, the next generation of products will adopt a photopolymerization low-temperature sintering composite system, which will initiate pre crosslinking at 200 ° C through ultraviolet light for instantaneous sintering, reducing moisture sensitivity to PPB level, while being compatible with flexible substrate packaging requirements. This technological breakthrough will further expand the application scenarios of conductive silver paste to cutting-edge fields such as wearable devices and electronic skins.

In addition, Advanced Institute Technology is building a full chain solution for "materials, equipment, and processes". For example, the intelligent dispensing equipment developed for YB-6001 can monitor parameters such as viscosity and curing temperature in real time to ensure process stability; The accompanying simulation software can simulate the material properties in different environments, helping customers optimize their designs. This "turnkey" service model is becoming an important competitive advantage for advanced institute technology in the high-end market.

Conclusion: Small materials, big changes

Research Platinum YB-6001 High Temperature Conductive Silver AdhesiveThe rise of the industry is not only a breakthrough in material technology, but also a revolution in the connection methods of the electronics industry. From the demand for lightweight consumer electronics, to the extreme environmental challenges of industrial electronics, and to the reliability requirements of aerospace, YB-6001 has redefined the standards for conductive connection materials with a balance of "extreme performance for universal applications". In the case of a well-known enterprise in Guangdong, we saw how this material creates tangible value for the enterprise by reducing repair rates, increasing production capacity, and saving energy consumption. In the future, with the continuous iteration of technology, conductive silver glue may be promoted from "supporting role" to "core engine" of the electronic industry, and YB-6001 has undoubtedly stood at the forefront of this change.
