Suppressing absorbing and thermally conductive materials | Application of heat dissipation and noise reduction in electronic devices

Introduction

With the rapid development of electronic devices towards high performance, high integration, and miniaturization, the problems of heat and electromagnetic noise generated by internal components are becoming increasingly prominent. Excessive temperature will directly affect equipment performance, stability, and service life; Electromagnetic interference can disrupt the normal operation of equipment and affect signal integrity. Therefore, developing new materials that combine efficient heat dissipation and electromagnetic wave absorption functions has become the key to solving the above problems.Advanced Institute (Shenzhen) Technology Co., LtdThe suppression of absorbing and conducting heat materials has emerged in this context, which achieves thermal management and electromagnetic compatibility simultaneously through a single material system, providing core guarantees for the reliability and quietness of modern electronic devices.

1、 Function analysis: Integrated dual effect, synergistic effect

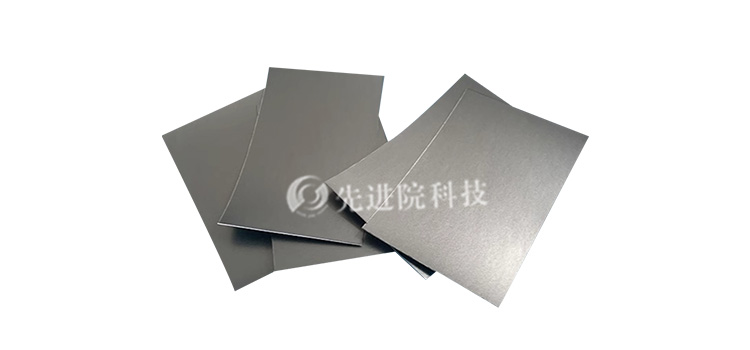

Suppressing absorbing and thermally conductive materialsThe core value lies in its "integrated dual effect" characteristic.

1. Thermal conductivity function: The material has an efficient thermal conduction path inside, which can quickly transfer the heat generated by chips, power devices and other heat sources to the heat dissipation shell or external environment, effectively reducing the core temperature.

2. Absorption function: The material can simultaneously absorb and convert specific frequency band electromagnetic wave energy generated inside the device into trace amounts of thermal energy for dissipation, thereby suppressing the reflection and propagation of electromagnetic waves and reducing electromagnetic interference.

These two functions work together within the material to enhance the overall performance of electronic devices.

2、 Application scenario analysis: from core hardware to user experience

This type of material is widely used in fields with high requirements for heat dissipation and electromagnetic compatibility:

1. Processor and power chip: applied to the surface of "heat generating" devices such as CPUs, GPUs, and power management chips to ensure stable operation under high loads.

2. Wireless communication module: used around 5G/Wi Fi/Bluetooth modules to absorb the electromagnetic noise generated during their operation, ensure signal transmission quality, and reduce interference with surrounding circuits.

3. Precision sensors and circuits: Provide a "quiet" and temperature appropriate working environment for high-sensitivity analog circuits or sensors, avoiding false triggering and performance drift.

4. In the field of consumer electronics: In high-end smartphones, laptops, and wearable devices, it not only ensures smooth performance release, but also indirectly enhances the user experience of "serenity".

3、 Core Advantage Analysis: Simplify Design, Improve Reliability

adoptElectromagnetic absorption thermal conductive composite materialBringing multiple advantages to electronic device design:

1. Space saving: Using a material to replace the traditional combination of "thermal interface material independent absorbing material" simplifies the stacking structure and frees up valuable space for equipment miniaturization.

2. Reliability improvement: Reduced interface and assembly processes, lowered stress risks and contact thermal resistance caused by mismatched thermal expansion coefficients of multiple materials, and improved the long-term reliability of the overall structure.

3. Performance optimization: By actively managing heat and suppressing interference, the stability, data accuracy, and long-term durability of the equipment have been fundamentally improved.

4、 Mechanism Analysis: Smart Integration of Materials Science

The scientific principle behind it is the clever design of materials science:

1. Thermal conduction path: By filling high thermal conductivity fillers (such as boron nitride, aluminum oxide, etc.) in polymer matrices (such as silicone, epoxy resin), a continuous network is constructed to build a "highway" for the transmission of phonons (the main carrier of heat).

2. Absorption mechanism: By introducing fillers with specific electromagnetic loss characteristics (such as carbon materials, magnetic materials, etc.), when electromagnetic waves enter the interior of the material, they will be converted into thermal energy through dielectric or magnetic loss mechanisms and quickly carried away by the thermal conduction path, thus achieving the "absorption" rather than "reflection" of electromagnetic waves.

Summary

In conclusion,Low radar cross-section thermal conductive materialIt represents an important direction in the development of electronic materials technology. It successfully integrates thermal management and electromagnetic compatibility functions, addressing the dual challenges of modern high-performance electronic devices in terms of heat dissipation and noise reduction in a simple, efficient, and reliable manner. Its application not only directly guarantees the performance and lifespan of the equipment, but also lays a solid material foundation for the continuous innovation and development of future electronic products by simplifying design and saving space.
